SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 264 of 549
Connector View & Information:-

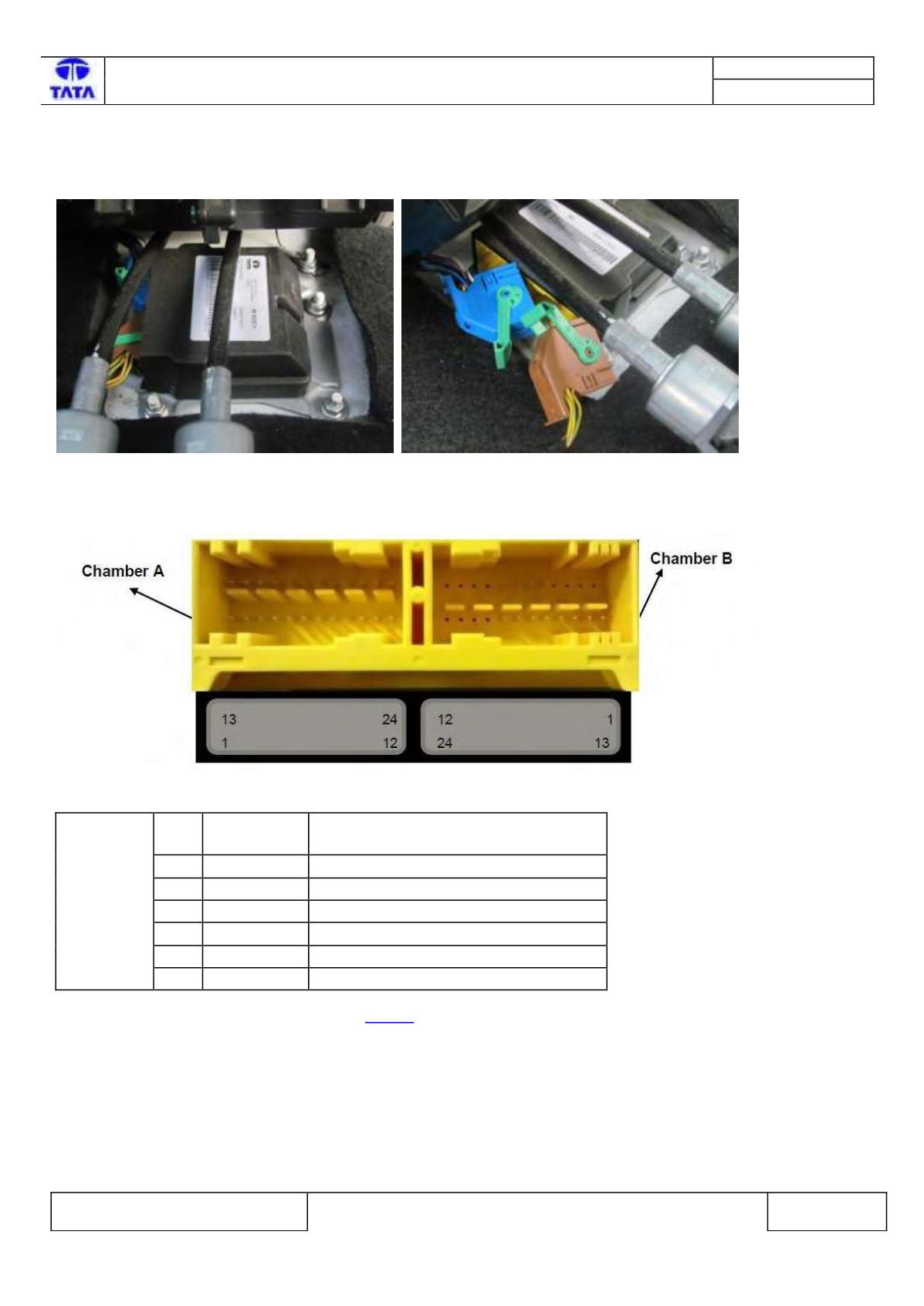

Fig245:- Airbag ECU connector interface.
Pin
No.
Pin Name Description
1 CAN_H CAN High
2 CAN_L CAN Low
5 CRO Crash Output
7 A_GND Common Switch GND
12 V bat Supply Voltage Battery
23 GND Power GND
Please refer Airbag ECU Pin Assignment on or more details.
Inspection Method:- N.A.
Airbag ECU is fitted in the floor of central console in the car.
.
CHAMBER A
Fig:243 Airbag ECU location Fig:244 Airbag Wiring Harness connector
