SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 177 of 549

Connector View & Information:-

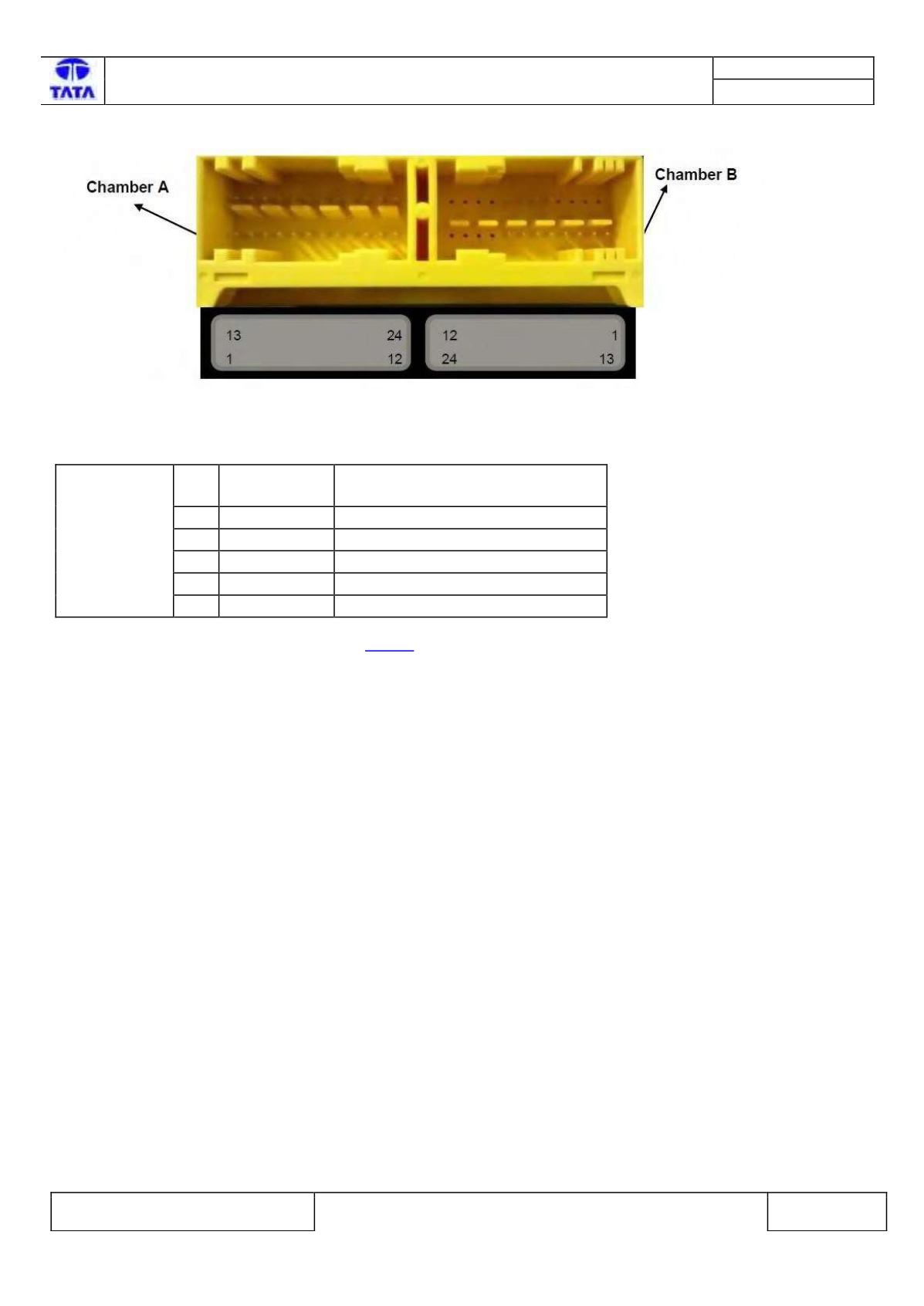

Fig171:- Airbag ECU connector interface.

Pin

No.

Pin Name

Description

1 CAN_H

CAN High

2 CAN_L

CAN Low

7 A_GND

Common Switch GND

12 Vbat

Supply Voltage Battery

23 GND

Power GND

Please refer Airbag ECU Pin Assignment on

or more details.

Inspection Method:-

N.A.

CHAMBER A
