SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag CoC Review &Approved
by:Sanjeev VM
Page: 28 of 549

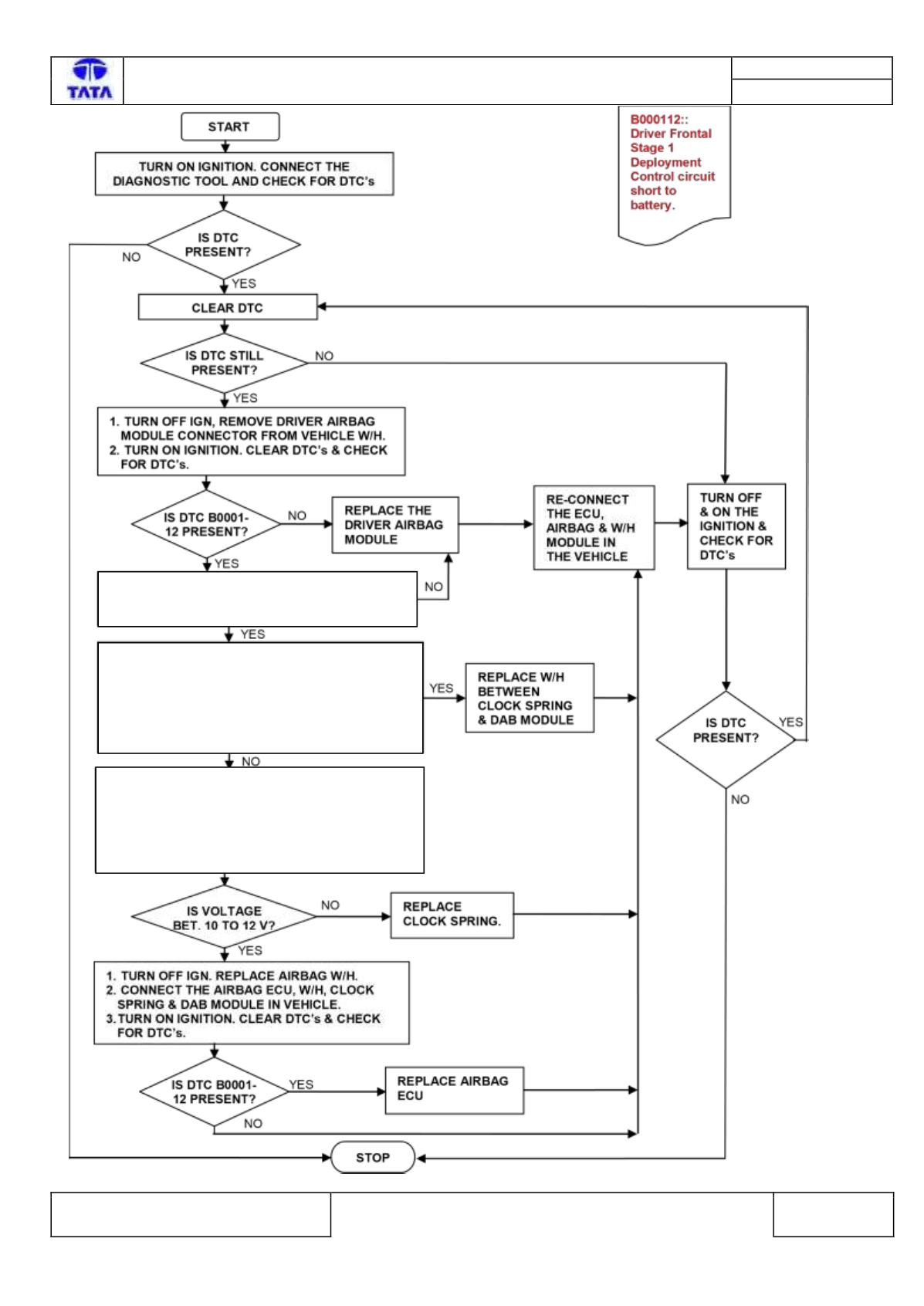

CHECK WHETHER VOLTAGEACROSS PINS
C176C-15&C176C-16 INVEHICLE W/H W.R.T
GROUND IS IN THE RANGE OF 10 TO12V.
1.TURN OFF IGNITION REMOVE THE W/H
CONNECTION BETWEEN CLOCK SPRING & DAB
2.TURN ON IGNITION & CHECK WHETHER
VOLTAGEACROSS PINS C182A-1&C182A-2 OF
CLOCK SPRING OUTPUT PINS W.R.T VEHICLE
GROUND IS IN THE RANGE OF 10 TO12V.
1.TURN OFF IGNITION REMOVE THE CLOCK
SPRING FROM THE VEHICLE W/H.
2. TURN ON IGNITION & CHECK WHETHER
VOLATGEACROSS PINS C182A-1&C182A-2 OF
CLOCK SPRING INPUT PINS W.R.T VEHICLE
GROUND IS IN THE RANGE OF 10 TO12V.
