Connector Location:-

The Chamber Coding & color are:

Chamber

Coding

Color

Chamber A

Blue

Chamber B

Brown

Connector View & Information:-

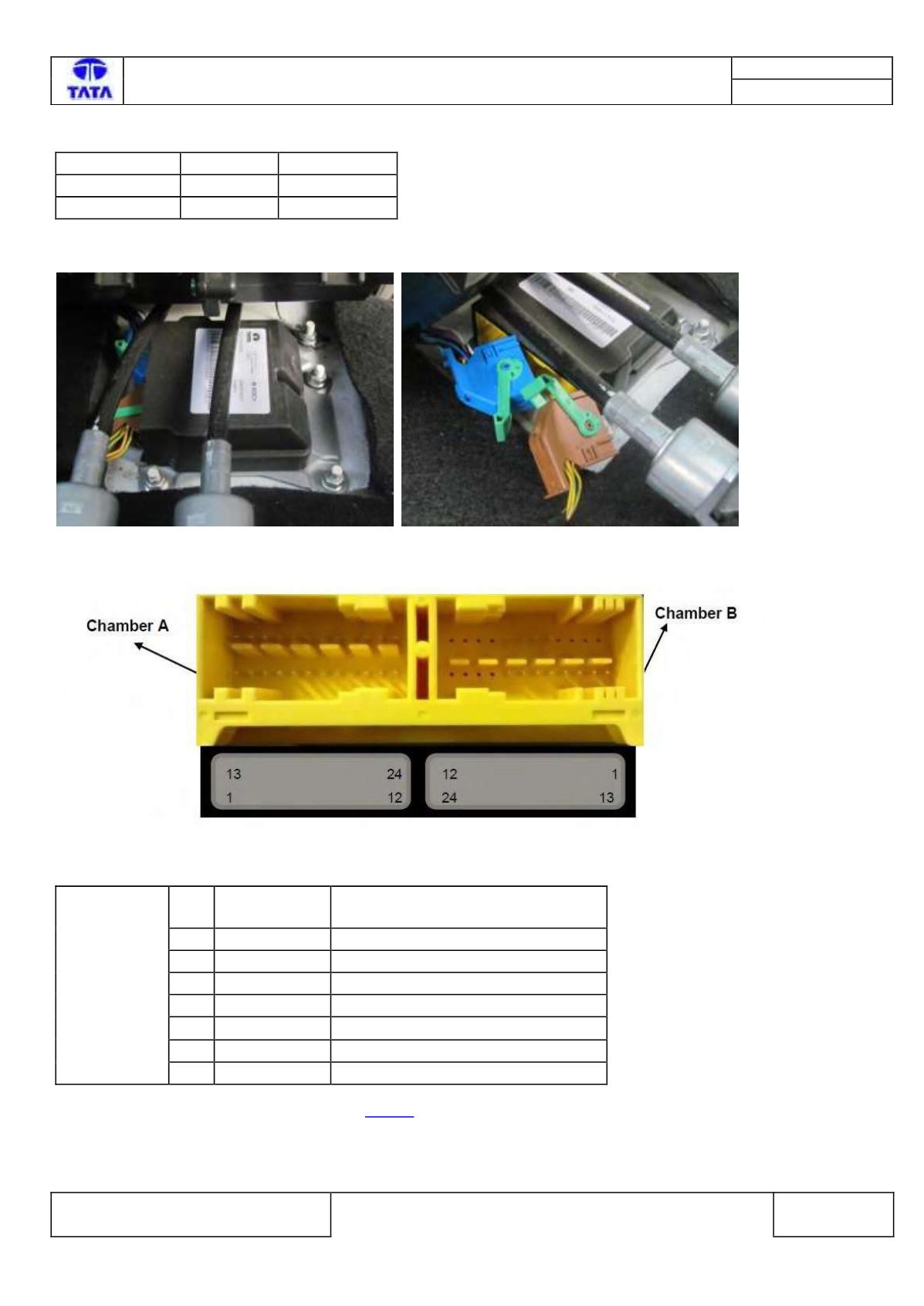

Fig19:- Airbag ECU connector interface.

Pin

No.

Pin Name

Description

1 CAN_H

CAN High

2 CAN_L

CAN Low

7 A_GND

Common Switch GND

12 Vbat

Supply Voltage Battery

15 ABFD-

Front Airbag Driver, Minus

16 ABFD+

Front Airbag Driver, Plus

23 GND

Power GND

Please refer Airbag ECU Pin Assignment on

or more details.

Inspection Method:-

N.A.

CHAMBER A

Airbag ECU is fitted in the floor of central console in the car.

Fig:18 Airbag Wiring Harness connector view.

Fig:17 Airbag ECU location
