SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag CoC Review &Approved
by:Sanjeev VM
Page: 34 of 549

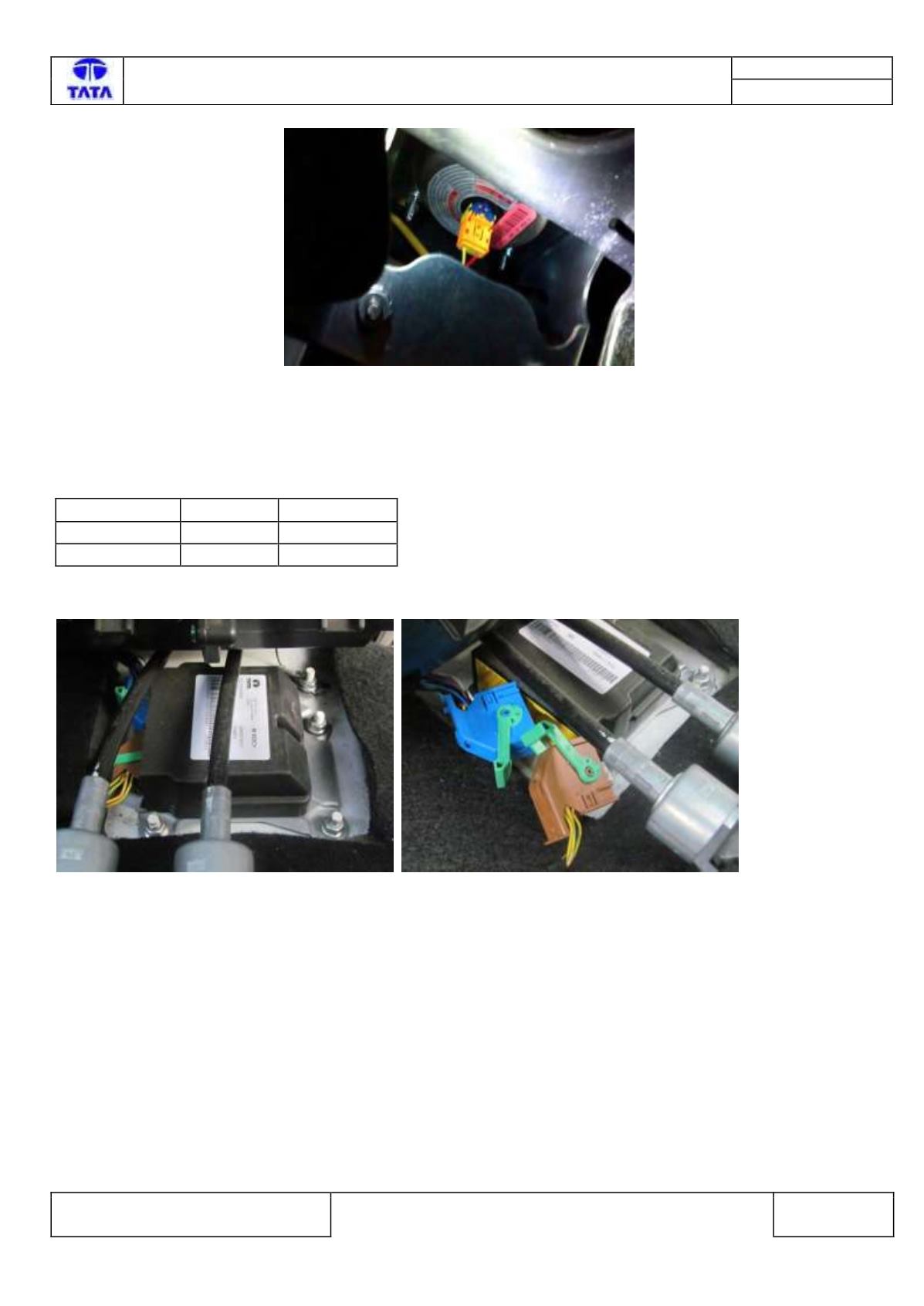

Fig25:- Passenger Airbag Module location / connector view
Connector Location:-
The Chamber Coding & color are:
Chamber
Coding
Color
Chamber A
D
Blue
Chamber B
C
Brown
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:26 Airbag ECU location
Fig:27 Airbag Wiring Harness connector
