B1F4B-23:- Blower Speed Up Request Button-Signal Stuck Low

Overview:-

ISO Code

B1F4B – 23

Customer Symptom

Blower Speed Up Request cannot be manually

selected

Fault Effects (On Vehicle)

Blower Speed Up switch is stuck and blower speed will

be stuck at one speed.

Lamp Status (If Any)

Blower with default speed i.e- Speed 2.

Fault Detection Condition

Blower Speed Up Request Button-Signal Stuck Low

Normal Operating Condition

Blower speed can be increase by pressing blower

speed up button.

Probable Trouble Area

Mode switch component failure.

Healing Condition

Check and lubricate switch, replace control panel

Component Details:

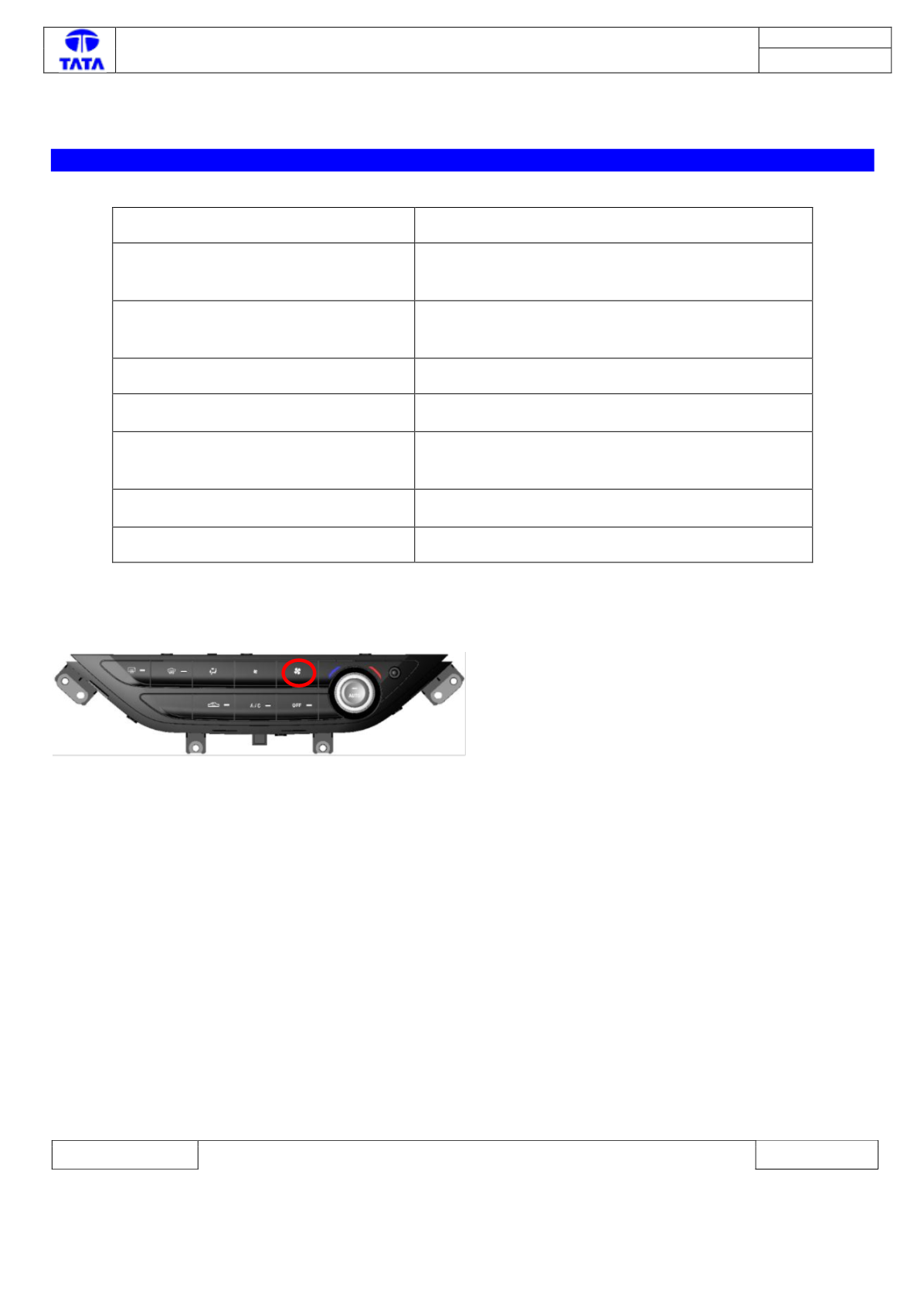

Blower Speed Up Request

Button is shown in above image. This button used to increase the blower speed.

Preliminary Checks:

Switch On the IGN & perform the following check.

1) Connect the Diagnostics tool & check the DTC fault code

2) If the fault code exists, refer the corrective actions
