DTC Troubleshooting Data
Version: 1.0
Date: 16-Oct-2018
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Author: ERC
Page: 102 of 202
DTC’s confirmation:-
After rectification, Fresh/Recirc button from control panel and ensure the following points by using TML diagnostic
tool before handing over to customer.
a)
Physical check of Fresh/recirc parameters change when requested.
b)
Read ECU parameters
Fresh Air/RECIRC Drive Motor A Output
, which should be requested values.

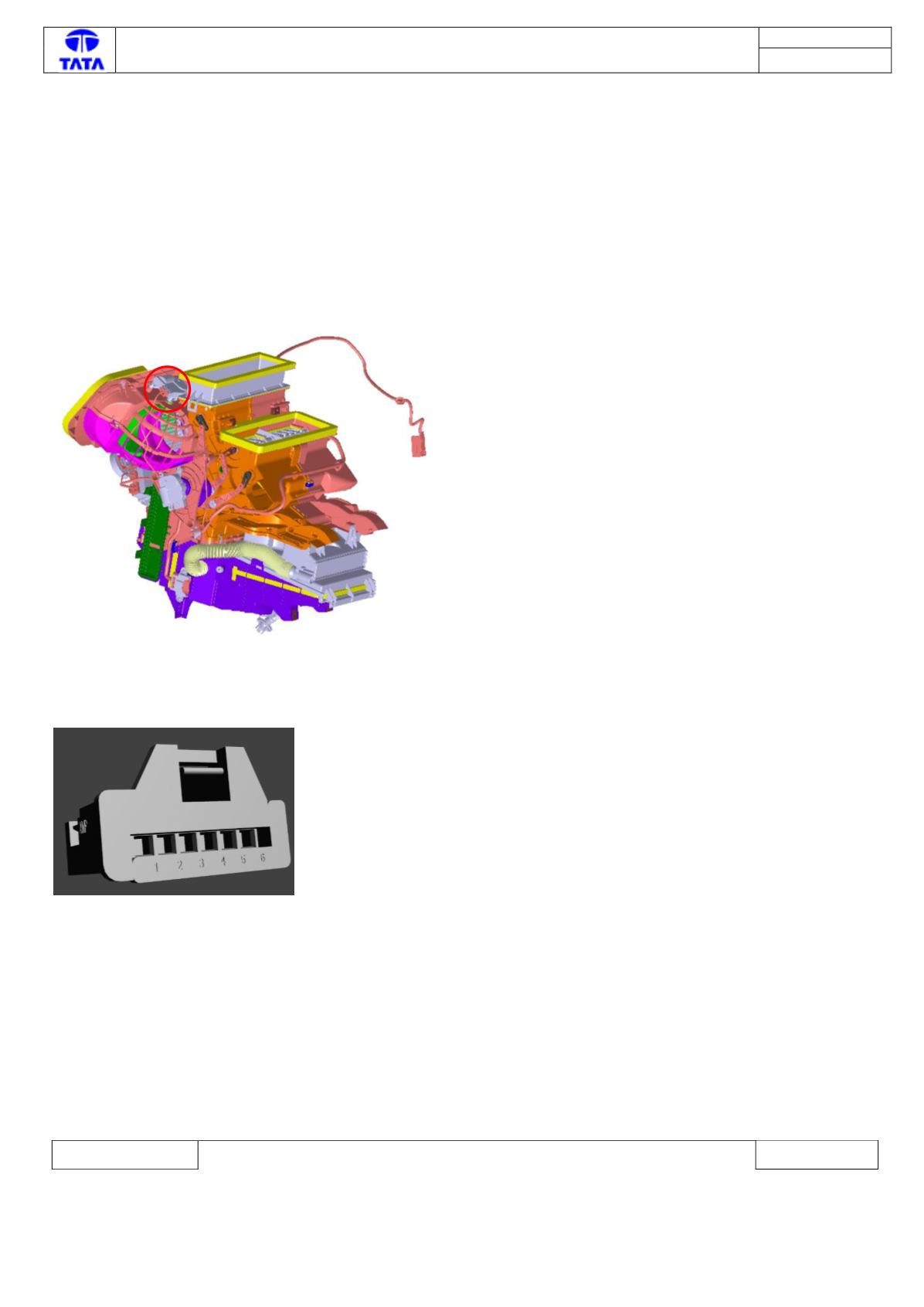

Component Location & Image:-
HVAC kit
Connector View & Information: -
