DTC Troubleshooting Data
Version: 2.0
Date: 28-Jul-17
Author: ERC
Page: 221 of 244
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Ignition input
22
Battery ground
24

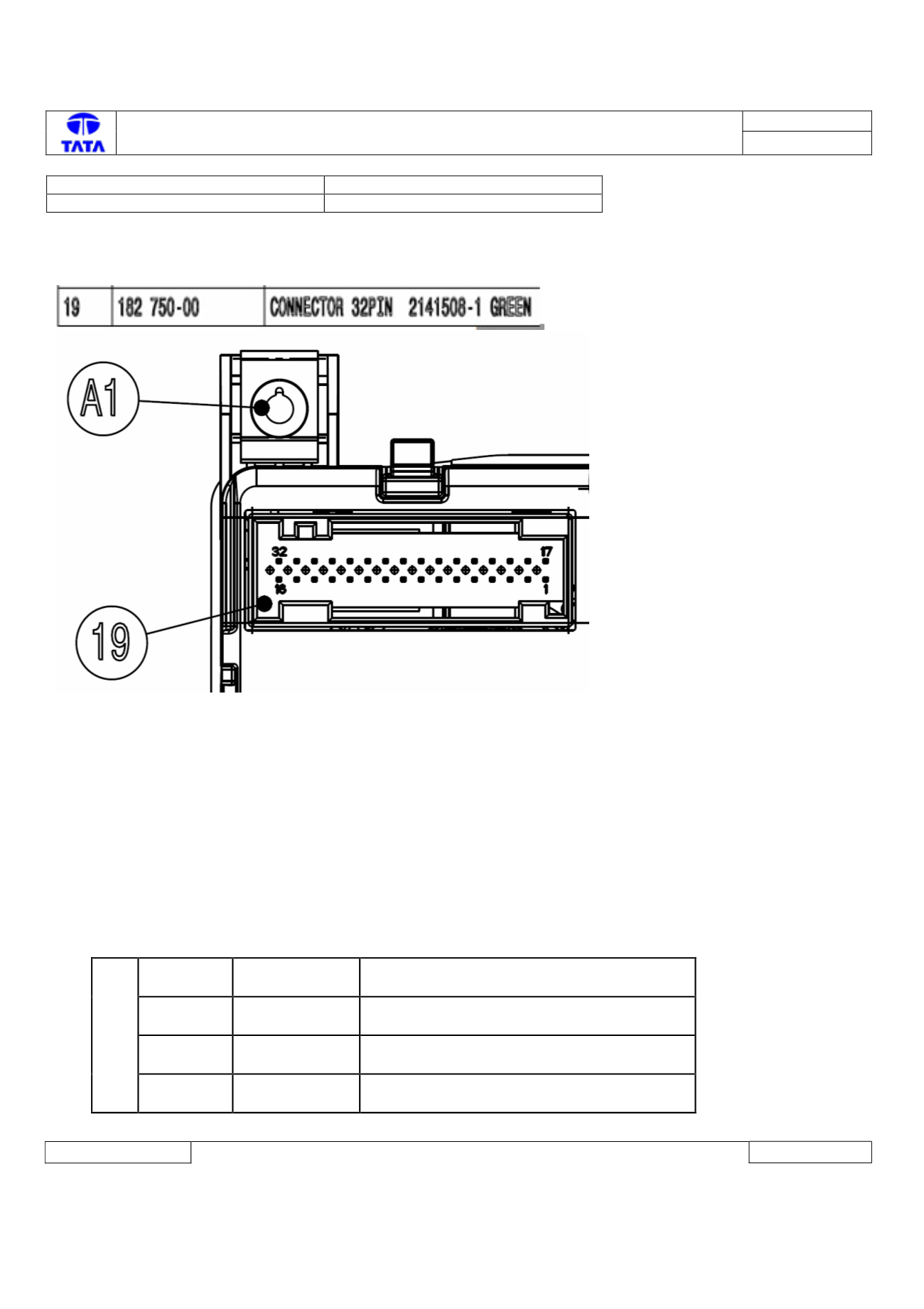

Connector View & Information: -
HVAC ECU side Connector
HVAC ECU Pin assignment
Pin No.
Pin Name
Description
24
CAN_H
CAN High
22
CAN_L
CAN Low
11
Ign
Ignition
