DTC Troubleshooting Data
Version: 2.0
Date: 28-Jul-17
Author: ERC
Page: 217 of 244
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Inspection Method: - N.A
HU ECU Pin assignment:-
Description
ECU pin
CAN_H
2(Connector-C1)
CAN_L
5(Connector-C1)
Battery
7(Connector-B)
Ignition input
5(Connector-B)
Battery ground
8(Connector-B)

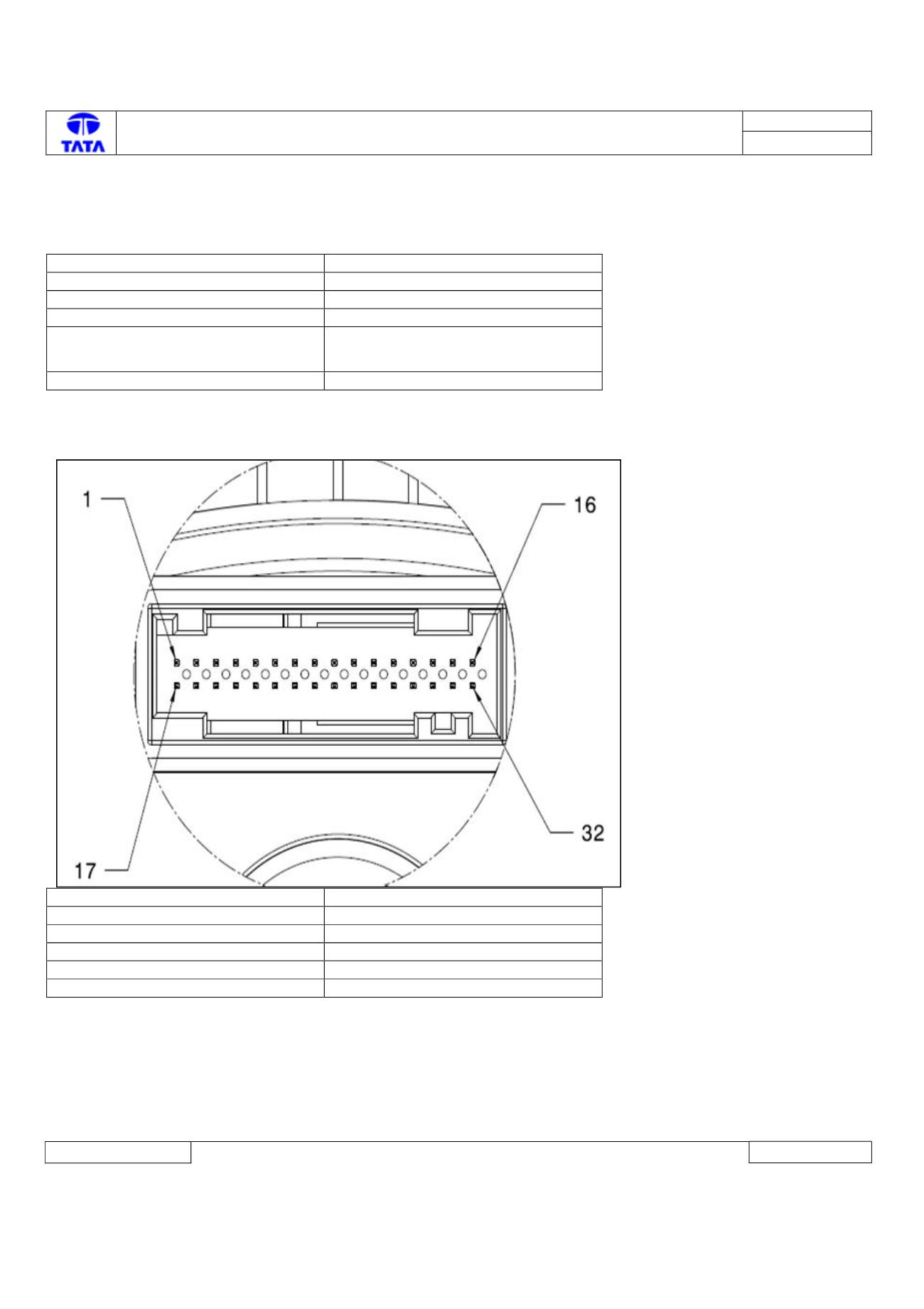

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chassis
6
CAN_L chassis
5
Battery
1
Ignition input
22
Battery ground
24
