DTC Troubleshooting Data
Version: 2.0
Date: 28-Jul-17
Author: ERC
Page: 226 of 244
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
BCM

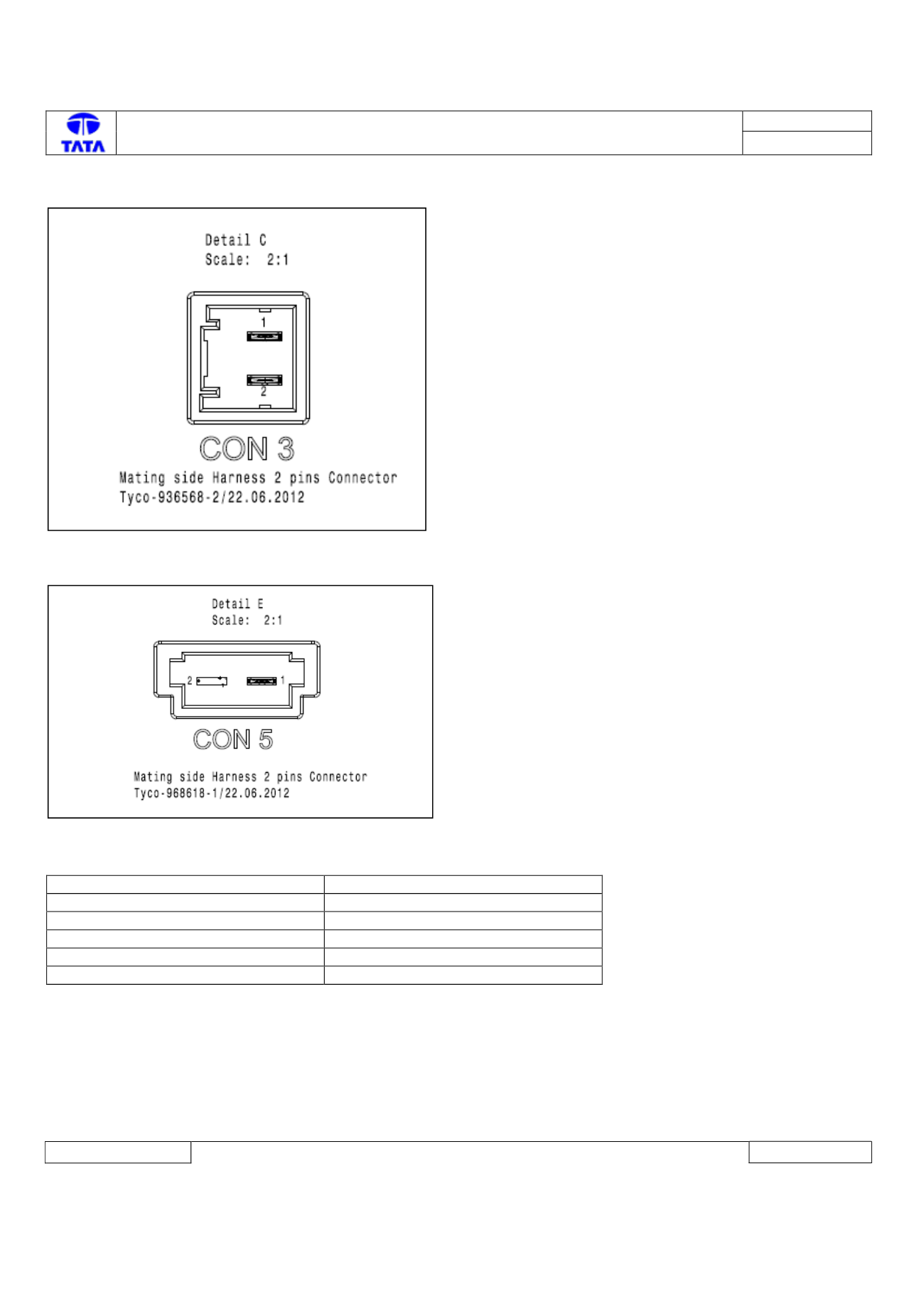

Connector C ECU side pin out
BCM Connector E ECU side pin out
BCM ECU pin details:-
Description
ECU pin
CAN_H chassis
A48
CAN_L chassis
A49
Battery
C1,C2 and E1
Ignition input
A9
Battery ground
A34, A47 and B26
