Connector View & Information: -

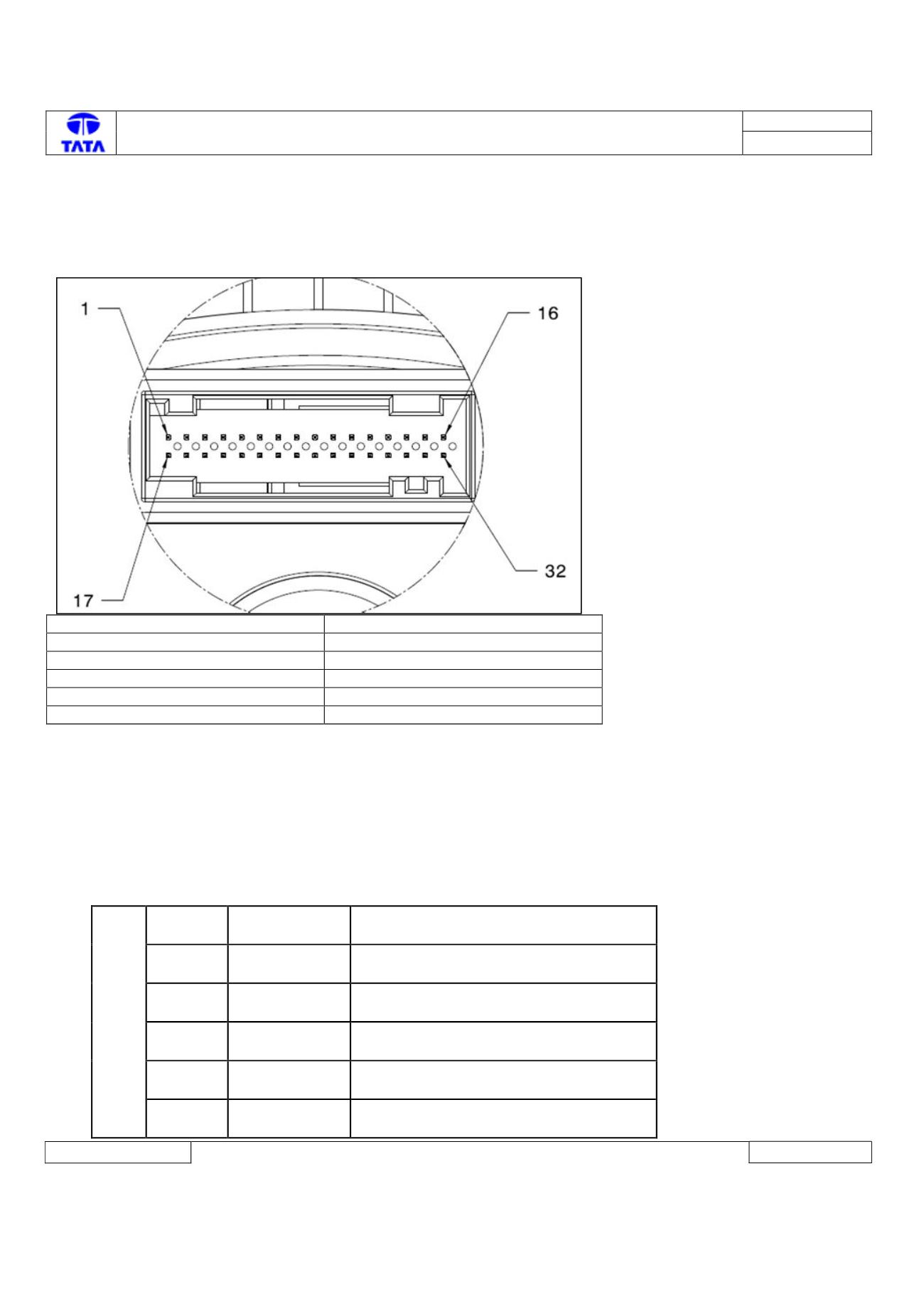

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chassis
6
CAN_L chassis
5
Battery
1
Ignition input
22
Battery ground
24
ECU Pin assignment (Applicable for gasoline ECM)
Vehicle Connector-1
Pin No.
Pin Name
Description
132
CAN_H
CAN High
144
CAN_L
CAN Low
116
Ign
Ignition
155,156 Vbat
Supply Voltage Battery
153,154 GND
Battery GND
