Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 339 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

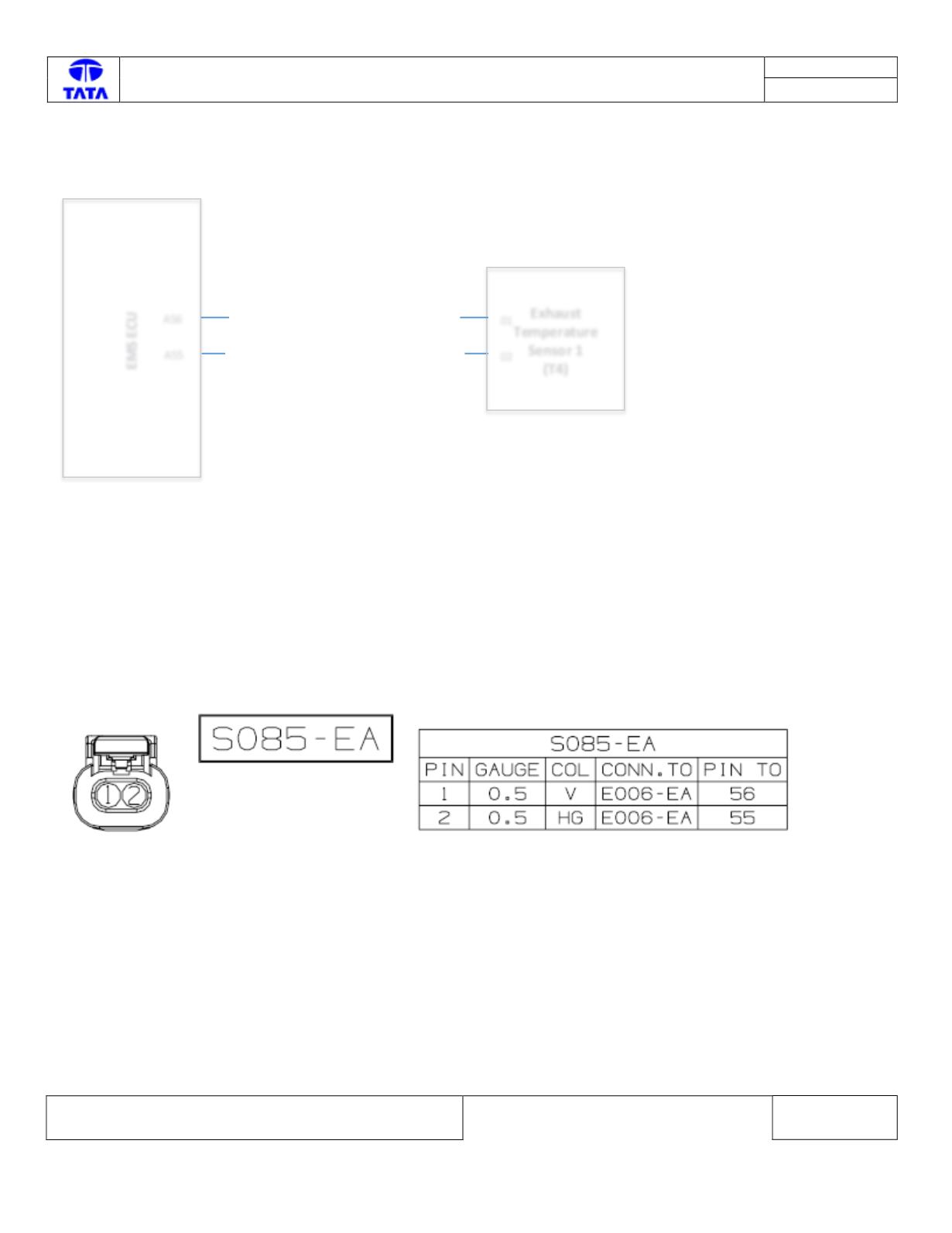

Circuit Schematic:
EMS ECU
Exhaust Temperature (Inlet Cat) Sensor Ground
A55
Exhaust
Temperature
Sensor 1
(T4)
02
Exhaust Temperature (Inlet Cat) Sensor Signal
A56
01
Component Location & Image:-
NA
Connector View & Information: -
