Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 345 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
EMS ECU
Differential Pressure Sensor Signal
Differential Pressure Sensor Ground
Differential Pressure Sensor Supply
K42
K16
K15
Particle
Filter
Differential
Pressure
Sensor
01
03
02

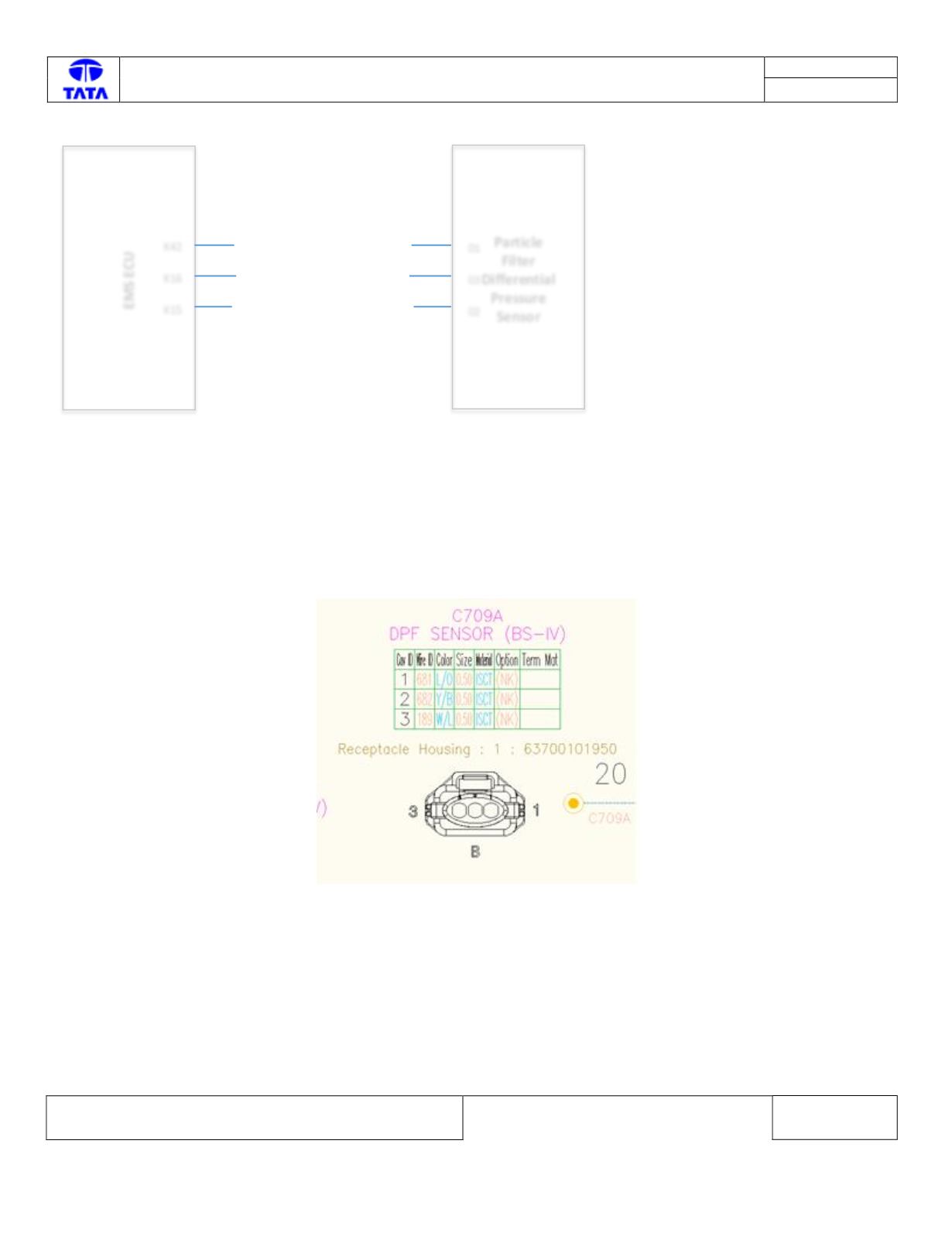

Component Location & Image:-
NA
Connector View & Information: -
