Vehicle Platform: NEXON
ECU Name: ESCL
DTC Troubleshooting Data
Version: 1.4
Date: 09 Jan 2018
Author: Hitesh Kaneria
Page: 21 of 88
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

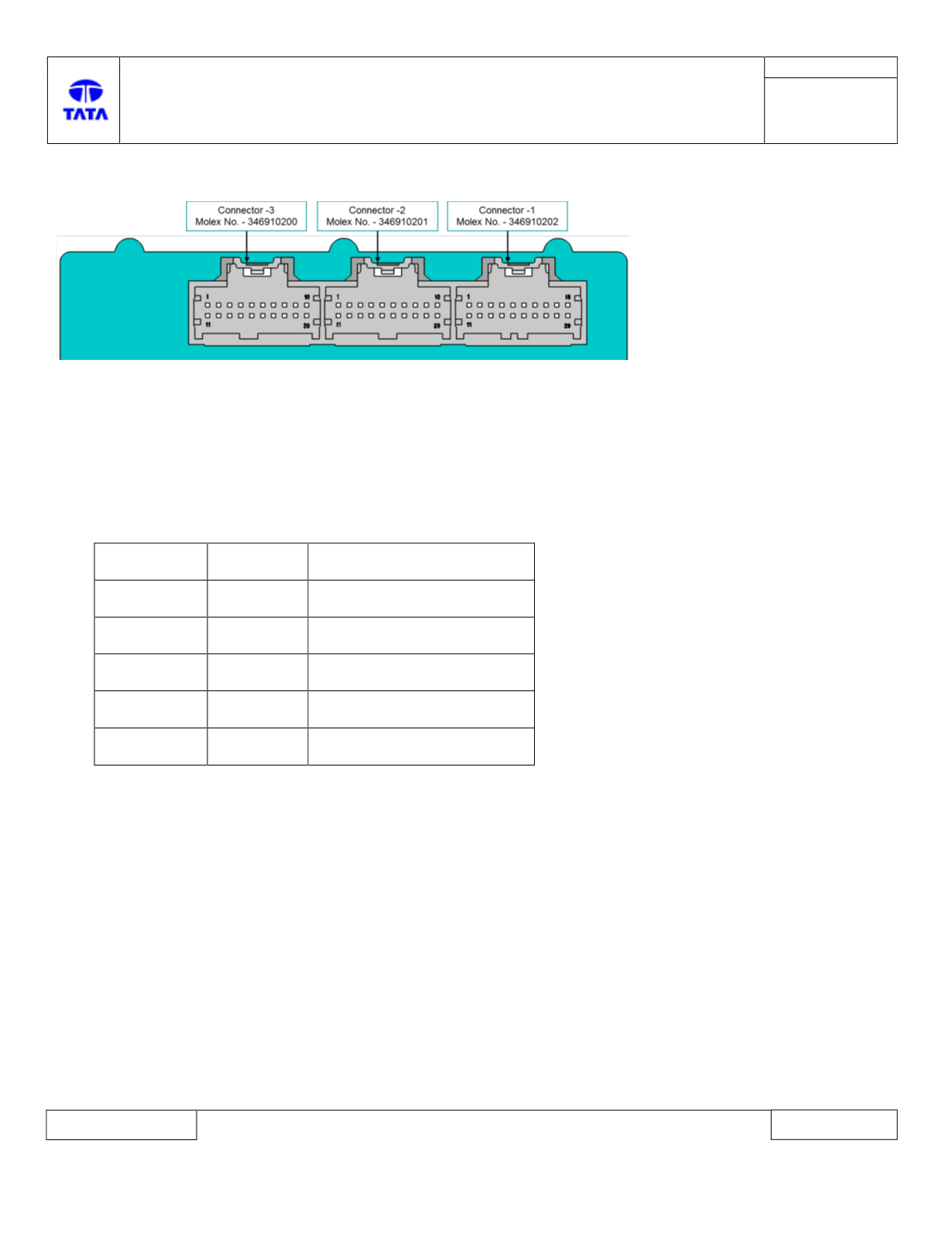

PEPS ECU side Connector:
Component Location & Image:
N.A
Connector Location:
N.A
PEPS ECU Pin assignment:
Connector
Pin No.
Pin Name
3
5
CAN_H PEPS
3
13
CAN_L PEPS
3
9, 10
Vbat
3
1
GND
2
20
Ignition
Inspection Method:
N.A
DTC’s confirmation:
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a) Check whether PEPS ECU is communicating with diagnostic Tool or not.
b) DTC should not be present in ECU memory.
