Vehicle Platform: NEXON
ECU Name: ESCL
DTC Troubleshooting Data
Version: 1.4
Date: 09 Jan 2018
Author: Hitesh Kaneria
Page: 25 of 88
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

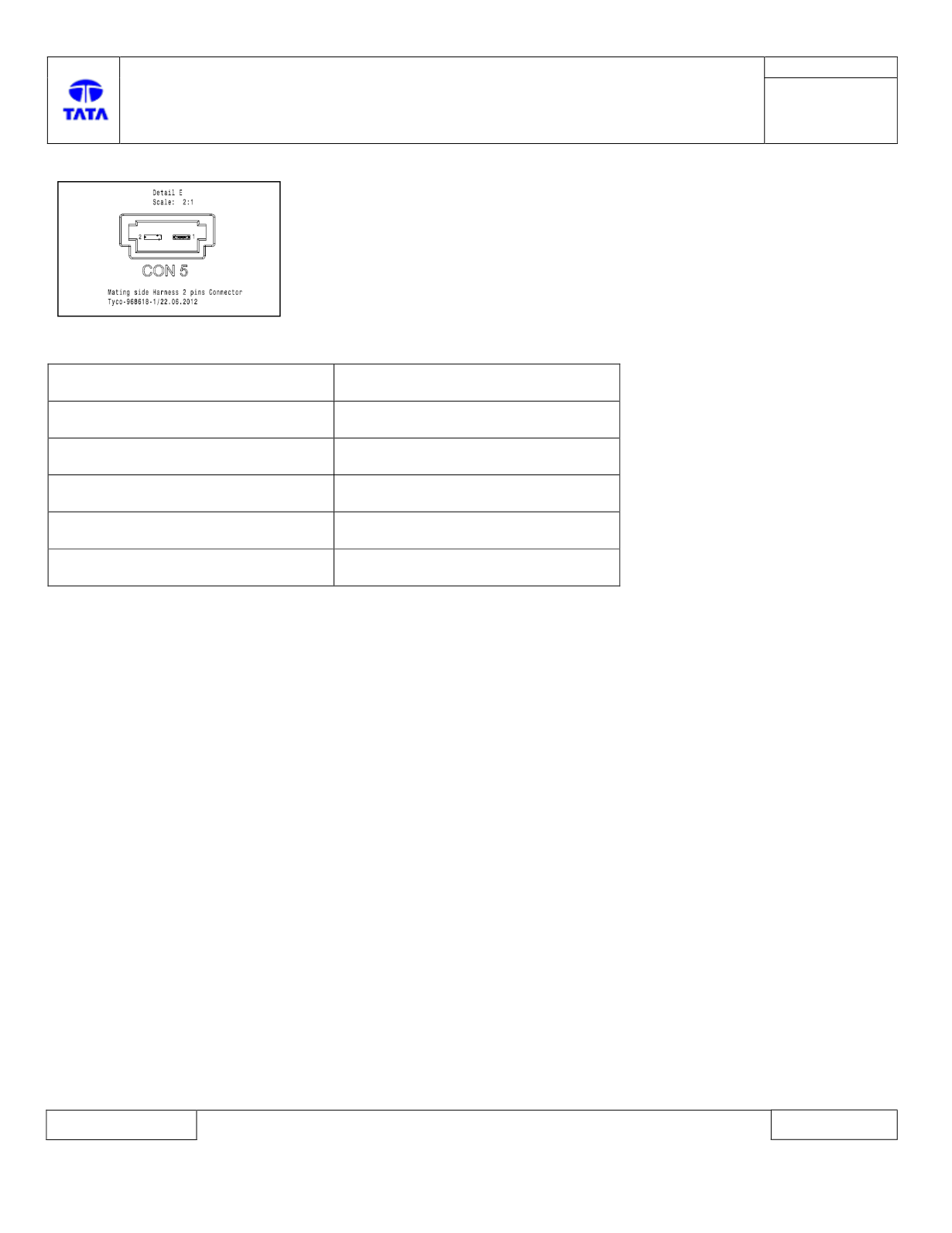

BCM ECU pin details:
Description
ECU pin
CAN_H chassis
A48
CAN_L chassis
A49
Battery
C1,C2 and E1
Ignition input
A9
Battery ground
A34, A47 and B26
Inspection Method:
N.A
