Vehicle Platform: NEXON
ECU Name: ESCL
DTC Troubleshooting Data
Version: 1.4
Date: 09 Jan 2018
Author: Hitesh Kaneria
Page: 17 of 88
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

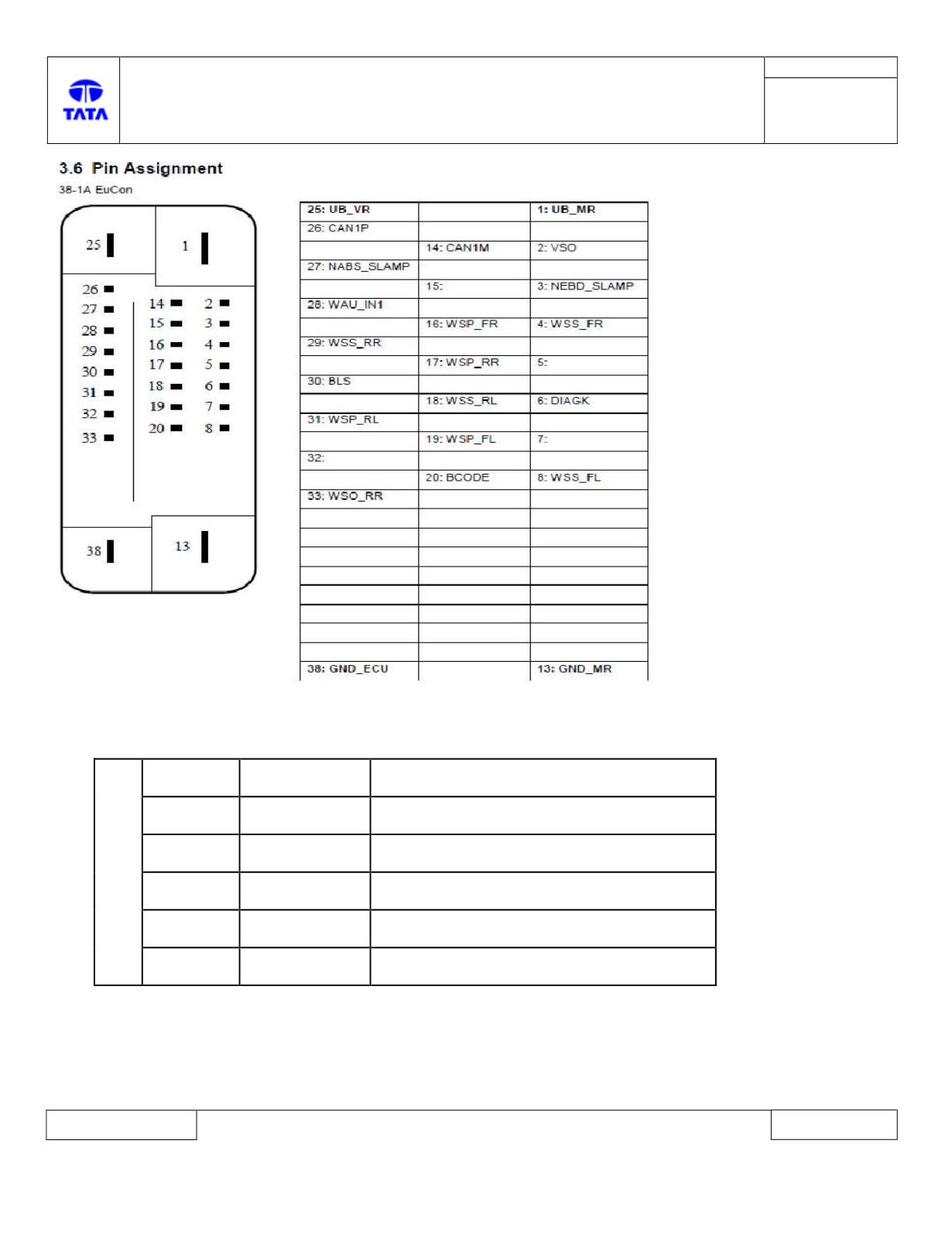

ABS ECU Pin assignment
Pin No.
Pin Name
Description
26
CAN_H
CAN High
14
CAN_L
CAN Low
28
Ign
Ignition
1,25
Vbat
Supply Voltage Battery
13,38
GND
Battery GND
Connector View & Information:
IPC ECU side connector diagram
