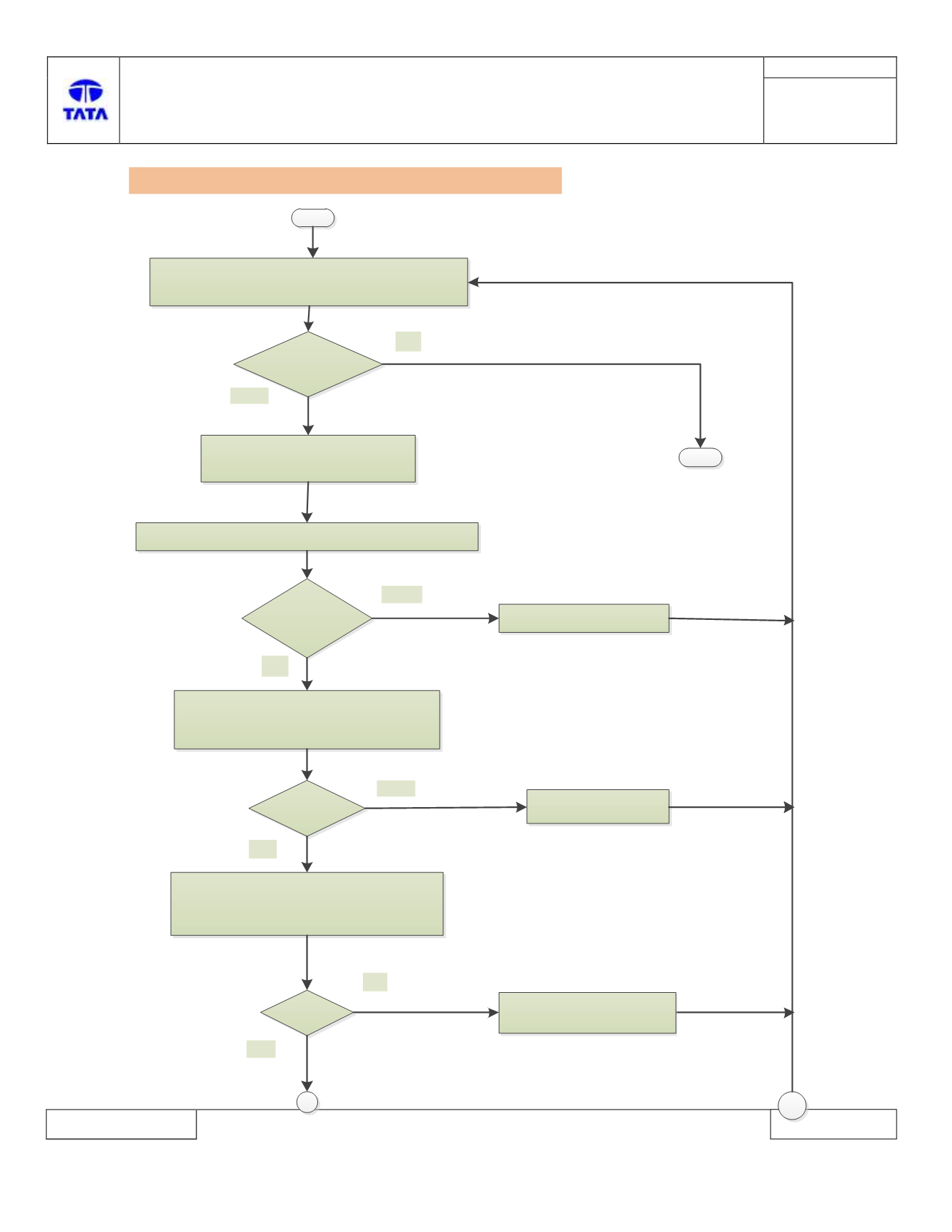

B223E - 92: Rear Wiper Park Position Signal - performance or incorrect operation
START
Provide Ignition off
On and Connect Diagnostic too
operate the Rear wiper Switch To turn on rear wiper motor..
Is DTC B223E-92
logged ?
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check BCM connectors for terminal backout
Are connectors
loose?
Correct connector fault
(Terminals Bend)
1.Remove BCM Connector.
2.Perform visual check of connectors for pins bent
or damaged etc.
Is connector
faulty?
STOP
Check continuity between BCM connector pin
[C1-
5]
( Harness side) with Ground
[C1-34/C1-47]
Continuity
Found?
Reconnect connectors firmly
NO
YES
YES
NO
YES
YES
NO
NO
Correct BCM side wiring harness
( Short to Ground)
A
B
