Vehicle Platform: OSPREY
ECU Name: Hella Body Control Module (BCM) DTC
Troubleshooting Data
Version: 1.4
Date: 15 May 2018
Author: Body CoC
Page: 581 of 855
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

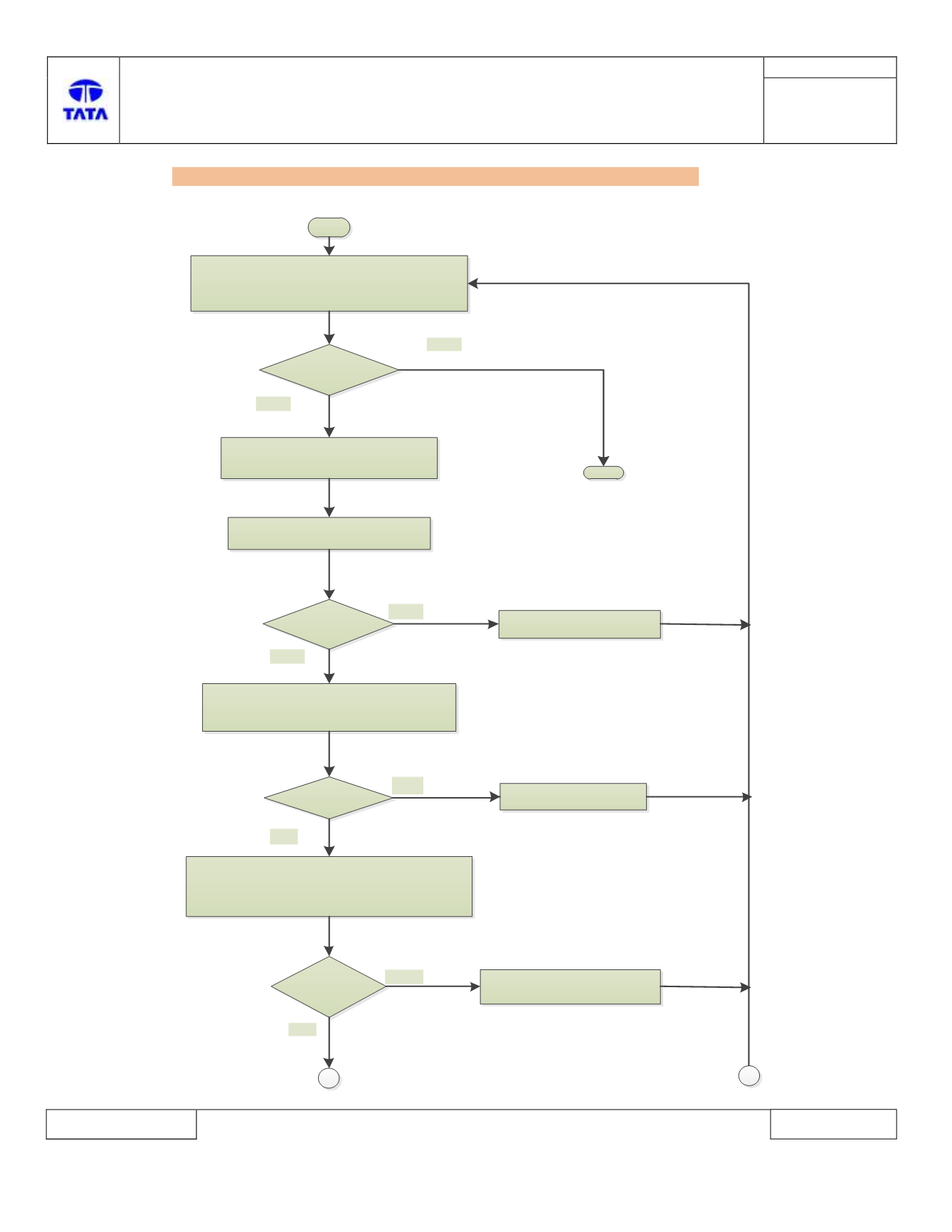

START
Provide Ignition Off
On ,Connect Diagnostic tool
operate the front wiper switches to turn on front
wiper motor.
Is DTC B2213-97
logged ?
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check BCM connectors for terminal
backout
Are connectors
loose?
1.Remove BCM Connector.
2.Perform visual check of connectors for pins
bent or damaged etc.
Is connector faulty?
Check continuity between BCM connector pin
[C1-18]
(
Harness side) with battery
[C3-2/C3-1]
Continuity
Found?
STOP
YES
NO
YES
NO
Reconnect connectors firmly
Correct connector fault
(Terminals Bend)
YES
NO
Correct BCM Side wiring harness
(Short to Battery)
NO
YES
B2213 - 97: Front wiper Park position signal - Component or system operation obstructed or blocked
