Vehicle Platform: OSPREY

ECU Name: Hella Body Control Module (BCM) DTC

Troubleshooting Data

Version: 1.4

Date: 15 May 2018

Author: Body CoC

Page: 503 of 855

Copyright ©

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

Start

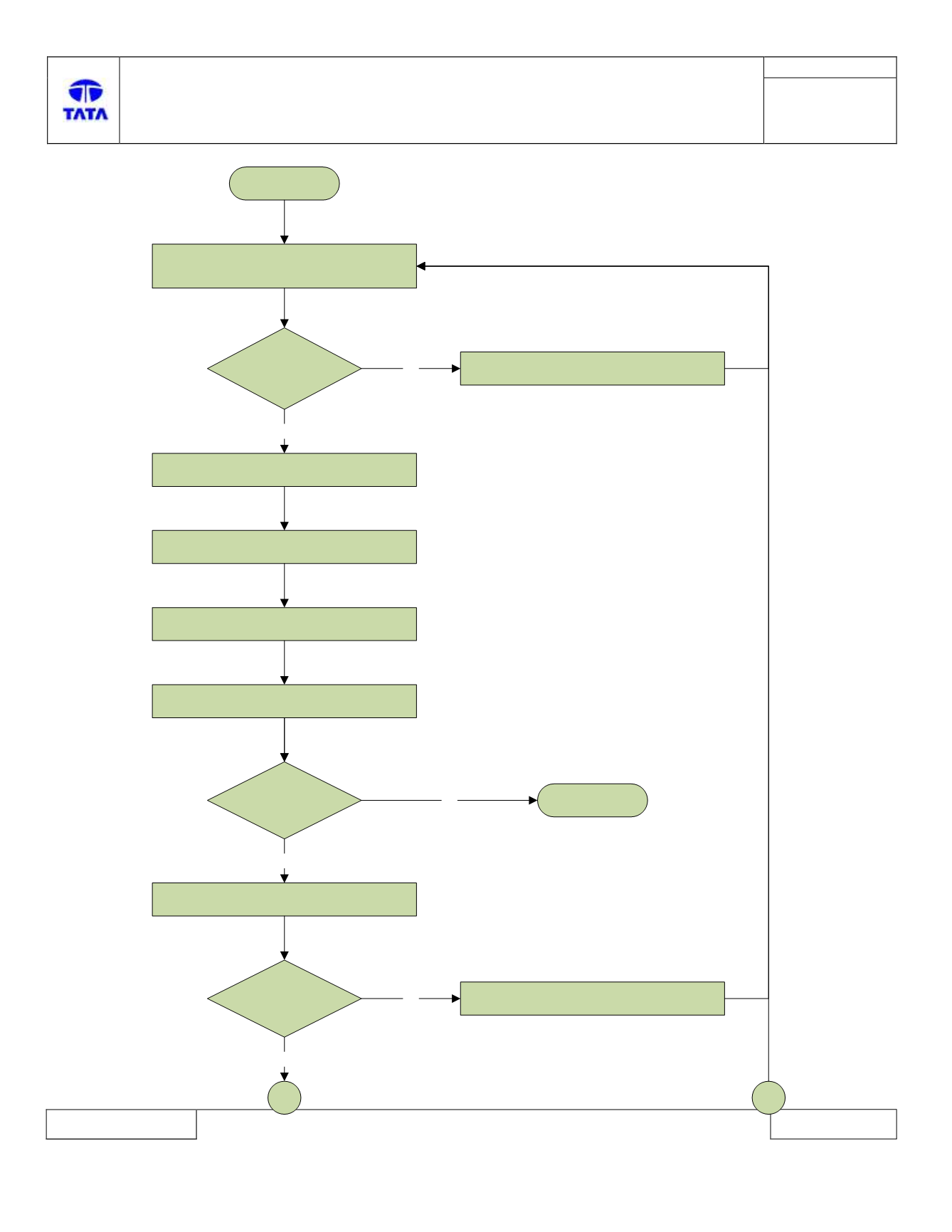

Turn IGN OFF – ON and wait for 5 seconds

Clear DTCs from BCM ECU

Turn IGN OFF – ON and wait for 5 seconds

Read DTCs from BCM ECU

Is U1613 - 64 DTC

present

Check Infotainment ECU connected and

working properly

Yes

Is Infotainment

working properly?

Connect the Infotainment ECU properly

No

Connect the vehicle battery, BCM, and

Infotainment ECU, if disconneted. Measure

Battery Voltage

Is battery voltage in

range (9V to 16V)

Yes

Yes

Stop

No

Charge the battery and/or replace battery

No

B

A
