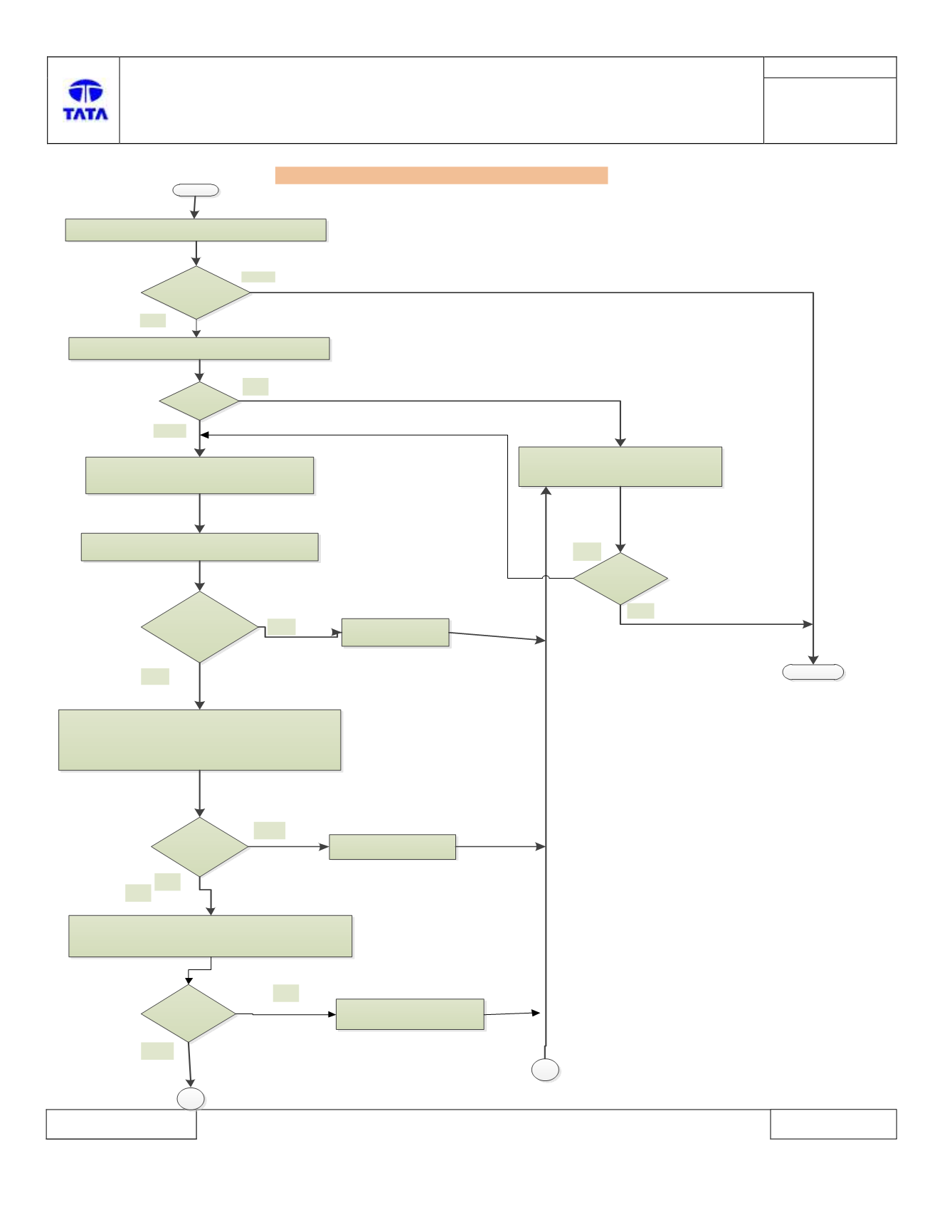

B1609 - 14: Door Lock Relay - Circuit Short to Ground or Open
START
Connect Diagnostic tool and check for DTCs
Is DTC B1609 –
14 present?
STOP
NO
Check DTC present is Permanent or Historic
Is History?
1. Clear the DTC from memory
2. Turn the IGN to OFF
3. Start the IGN
Is DTC B1609 -
14 present?
NO
YES
YES
NO
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check the physical connection of the BCM
connector & All door lock relay connector.
Are connectors
loose ?
Reconnect
connectors firmly
YES
1.Remove BCM side wiring harness Connector.
2.Perform visual check of connectors for pins bent or
damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
NO
B
1) Remove relay from its mounting base.
2) Check continuity between BCM connector pin no
[C1-29]
to door lock relay connector [C115B-1C] .
Correct connector fault
(Open Circuit)
NO
Continuity
found?
NO
YES
YES
A
