BCM ECU Faulty

Replace BCM ECU

Continuity

found?

Correct BCM side wiring harness

(Short To Ground)

YES

Check continuity between BCM connector pin

[C1-29]

and BCM ground pin

[ C1-34/ C1-476]

1. Take out the relay from its mounting base.

2. Check the continuity between the two

terminals of relay coil.

Is Relay

faulty?

Replace with the correct and

working Relay

YES

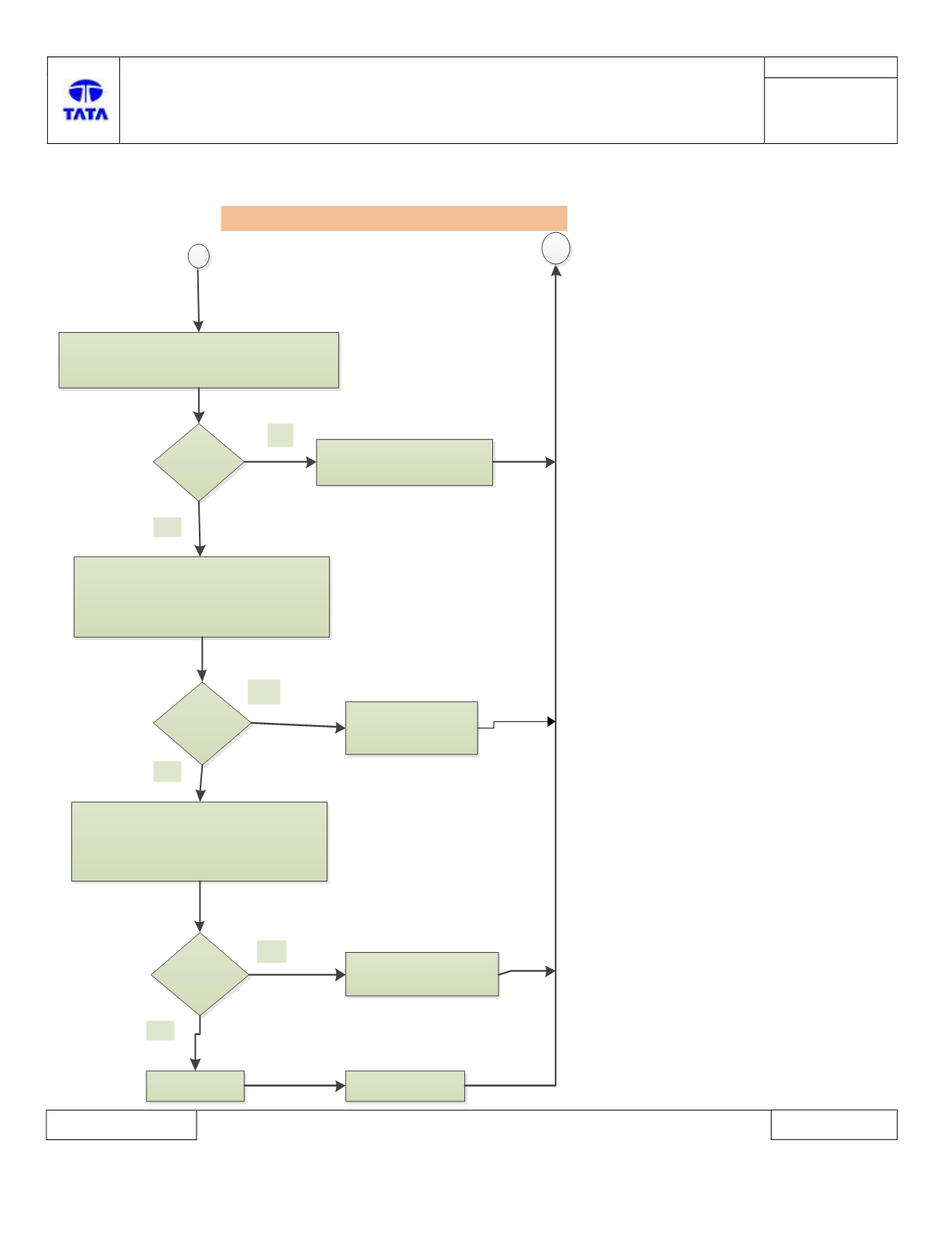

B1609 - 14: Door Lock Relay - Circuit Short to Ground or Open

YES

1.Remove door lock relay mating connector

2. Perform the visual check of connectors for pin

bend or damaged etc.

Is connector

faulty?

Correct Relay mating

connector fault

(Terminals Bend)
