Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 34 of 737
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

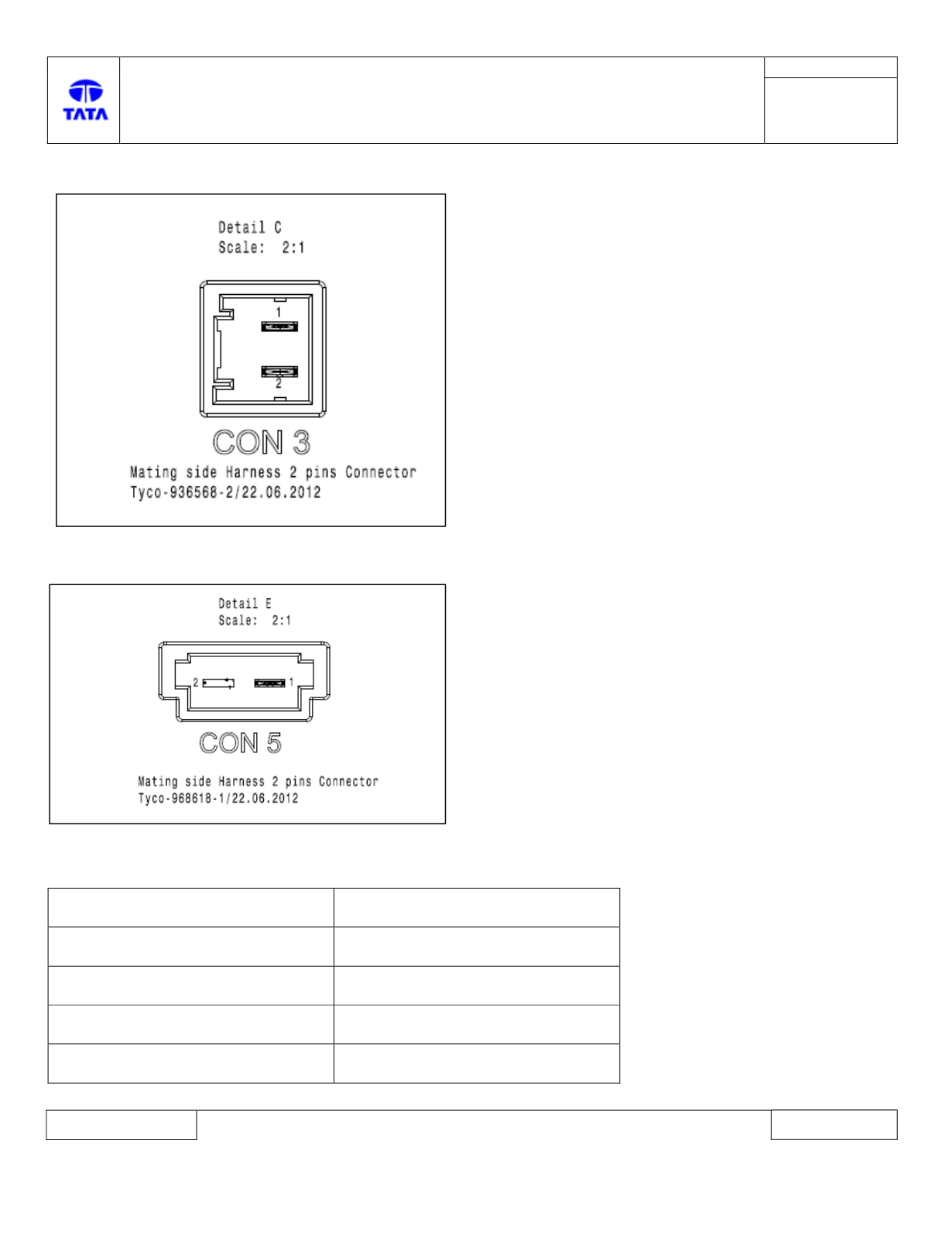

BCM Connector C ECU side pin out
BCM Connector E ECU side pin out
BCM ECU pin details:-
Description
ECU pin
CAN_H chassis
A48
CAN_L chassis
A49
Battery
C1,C2 and E1
Ignition input
A9
