Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 39 of 737
Copyright © TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a) Check whether VICM ECU is communicating with diagnostic Tool or not.
b) DTC should not be present in ECU memory.
Circuit Schematic
Component Location & Image:- N.A
Connector Location: N.A
Connector View & Information: - N.A

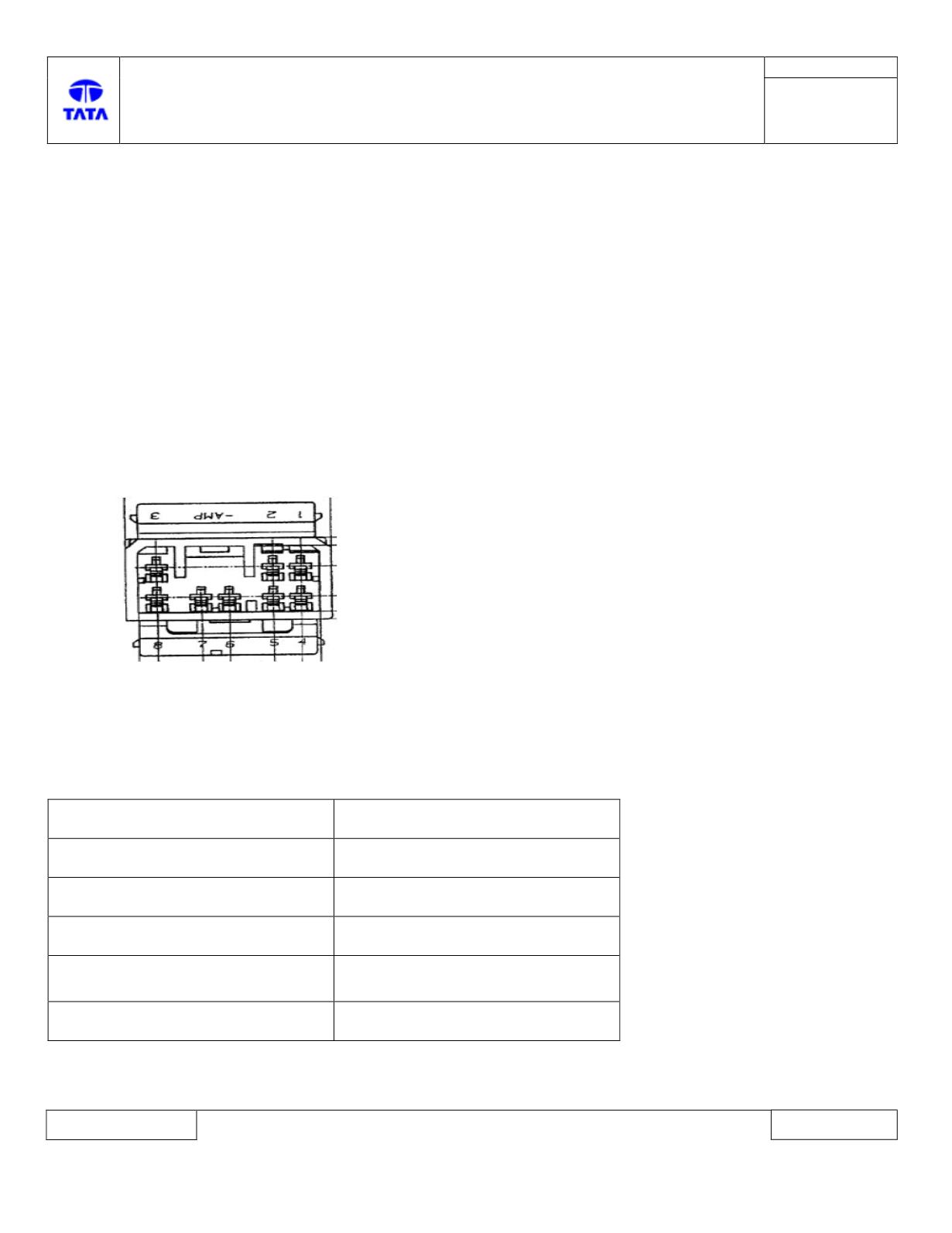

VICM ECU Side Connector:
Inspection Method: - N.A
HU ECU Pin assignment:-
Description ECU pin
CAN_H 3
CAN_L 8
Battery 1,7
Ignition input 4
Battery ground 2
