Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 32 of 737
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
IPC ECU Pin assignment:-
Description
ECU pin
CAN_H chassis
6
CAN_L chassis
5
Battery
1
Ignition input
22
Battery ground
24

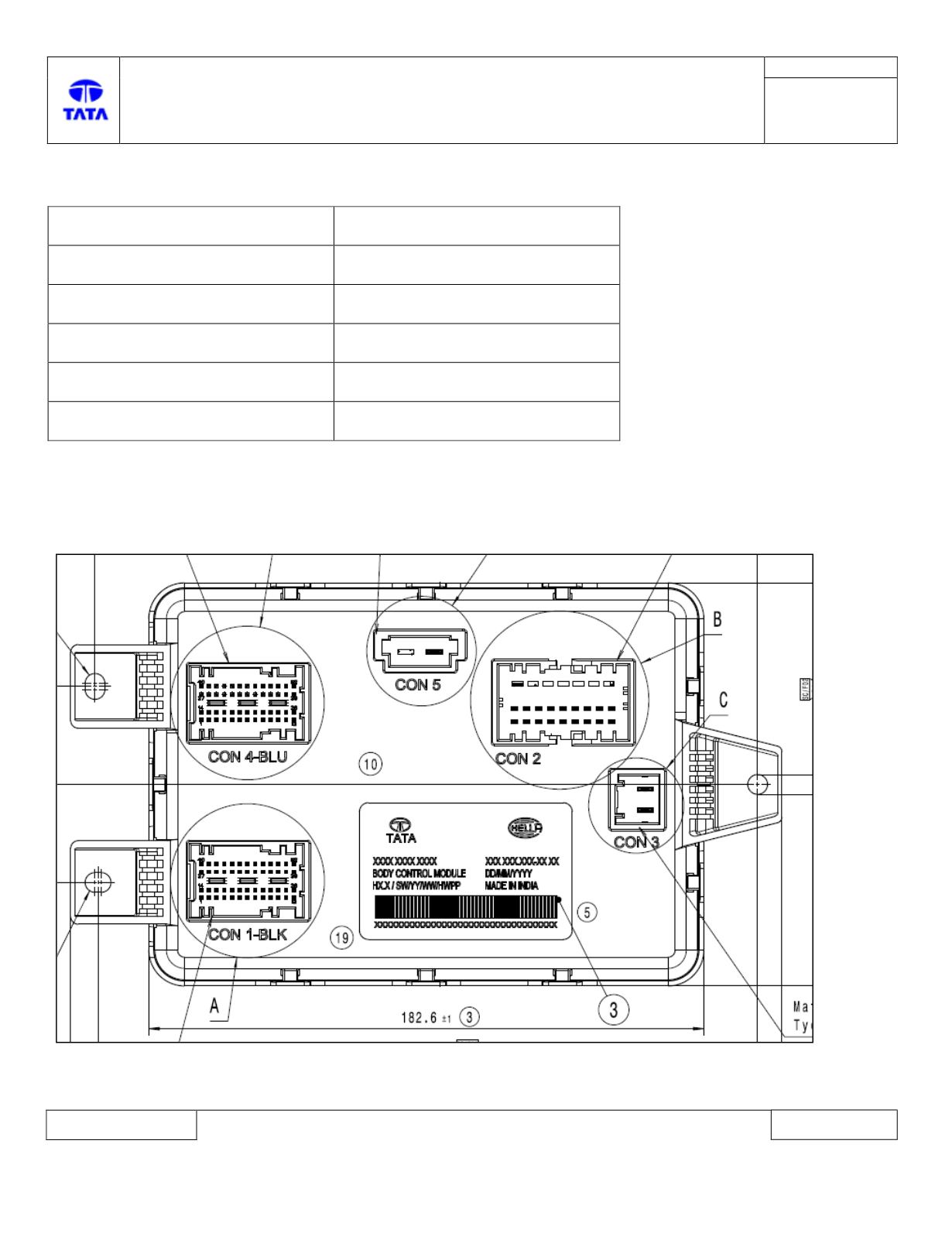

BCM connector ECU side layout
Connector View & Information: -
BCM
