Vehicle Platform: Tiago,Tigor & Osprey

ECU Name: Hella Body Control Module (BCM)

DTC Troubleshooting Data

Version: 2.0

Date: 22-10-2018

Author: Parag K

Page: 27 of 737

Copyright ©

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

DTC’s confirmation:-

After rectification, ensure the following points using TML diagnostic tool before handing over to customer.

a) Check whether SRS ECU is communicating with diagnostic Tool or not.

b) DTC should not be present in ECU memory.

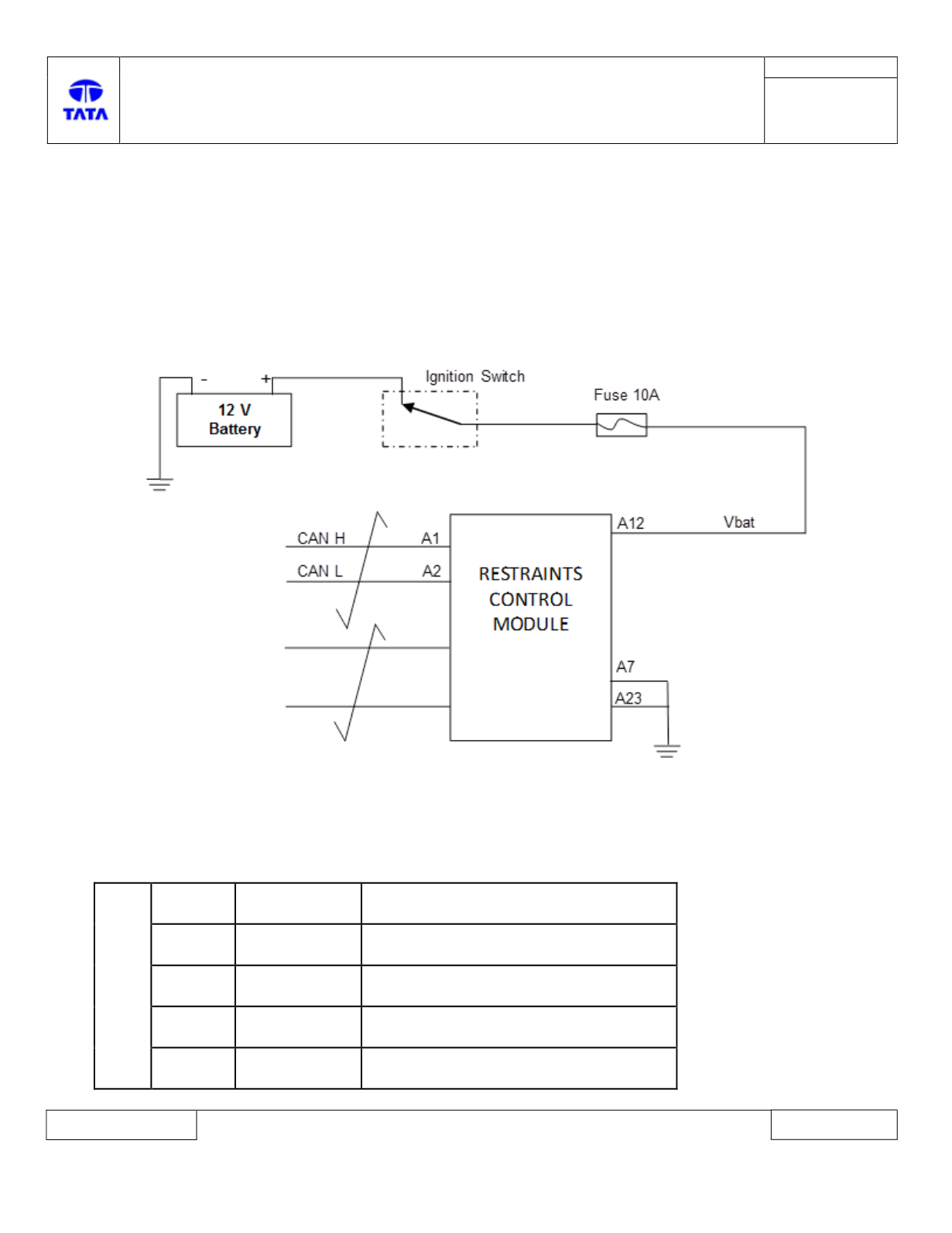

Circuit Schematic Diagram:-

SRS ECU side Connector:

Component Location & Image:- N.A

Connector Location: N.A

SRS ECU Pin assignment:-

CHAMBER A

Pin No.

Pin Name

Description

1

CAN_H

CAN High

2

CAN_L

CAN Low

7

A_GND

Common Switch GND

12

Vbat

Supply Voltage Battery
