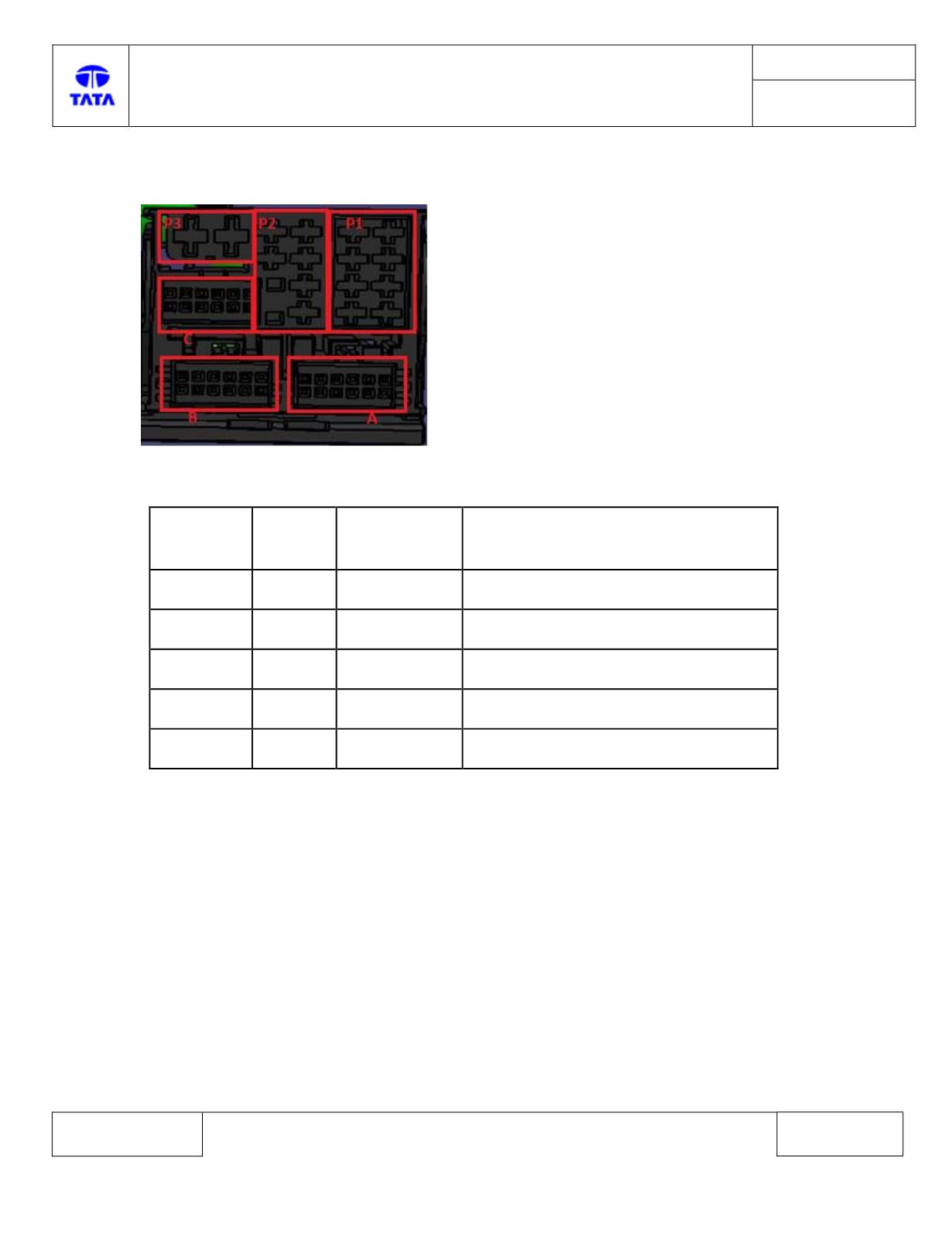

Silver Box ECU side connector diagram
Silver Box
ECU Pin assignment:-
Connector
No.
Pin No.
Pin Name
Description
B_3
2
CAN_H
CAN High
B_4
5
CAN_L
CAN Low
Connector 1
17
Vbatt
Supply Voltage Battery
B_1
5
IGN
IGN
Connector 1
18
GND
Power GND
