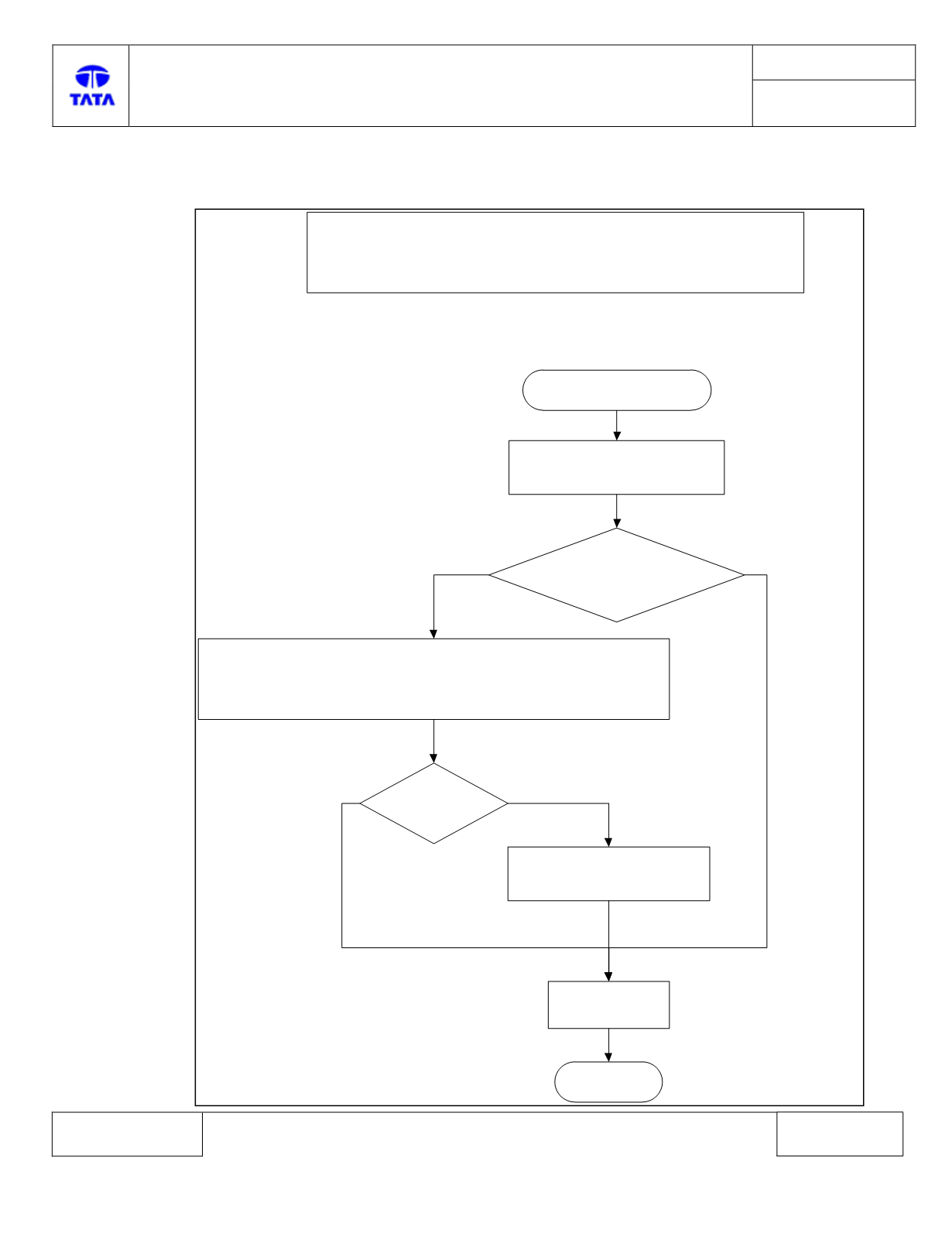

Trouble Shooting:-
Start
Read IVN DTCs in Silver Box
Is MTO logged against
IPC in current state?
No (In history)
Check continuity between Silver Box CAN_H (Connector C1 pin no. 2
) to IPC CAN_H(pin no. 6) and Silver Box CAN_L (Connector C1 pin
no. 5 ) to IPC CAN_L(pin no. 5) in vehicle wiring side connector.
Is continuity
there?
Repair the wiring harness
Clear DTC
Stop
Yes
Yes
No
U0155-08 Lost Communication with Instrument
Panel Cluster (IPC) Control Module - Bus Signal /
Message Failure
