Connector View & Information: -

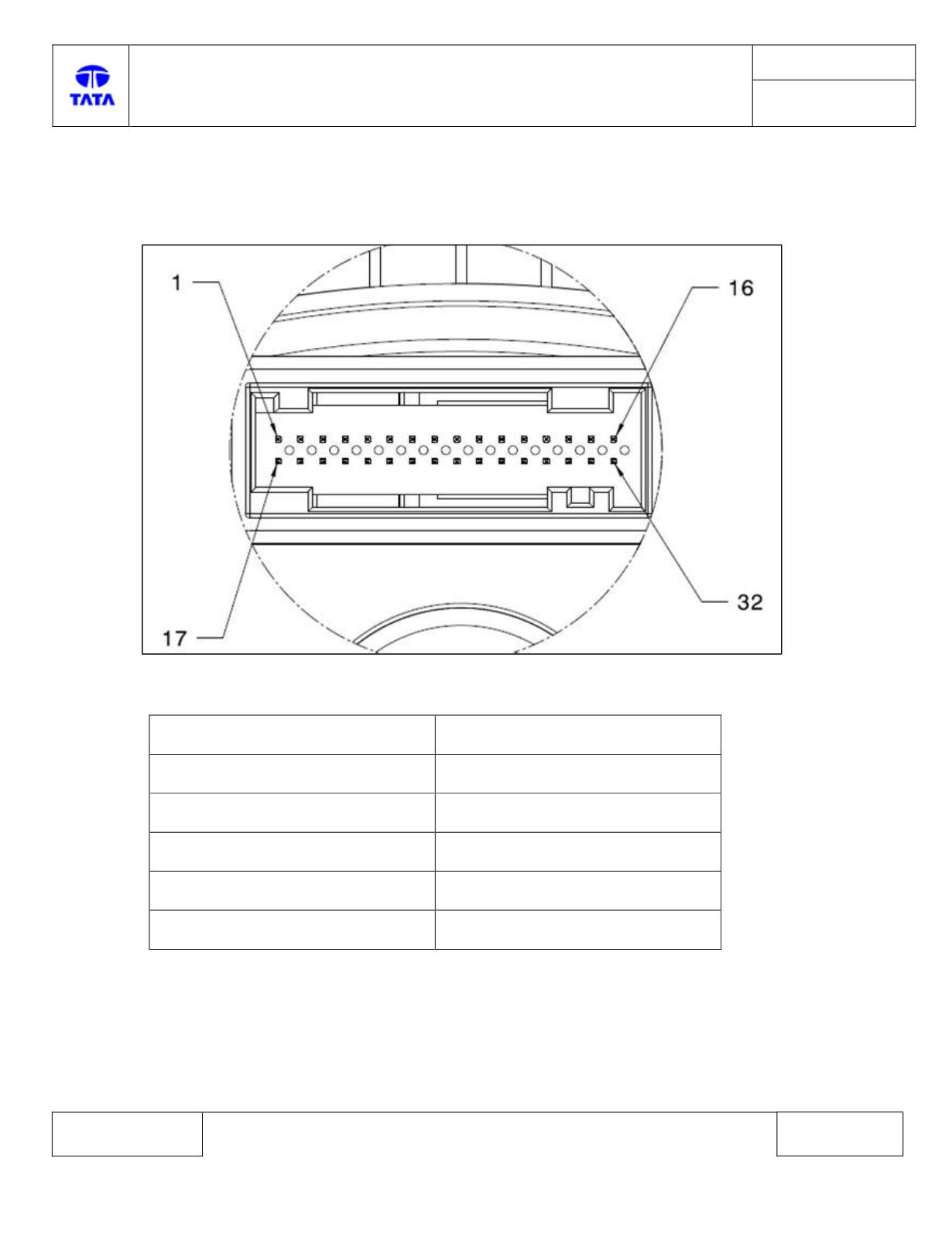

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chasis
22
CAN_L chasis
23
Battery
1
Ignition input
8
Battery ground
4
