H. TRANSAXLE AS+SEMBLY

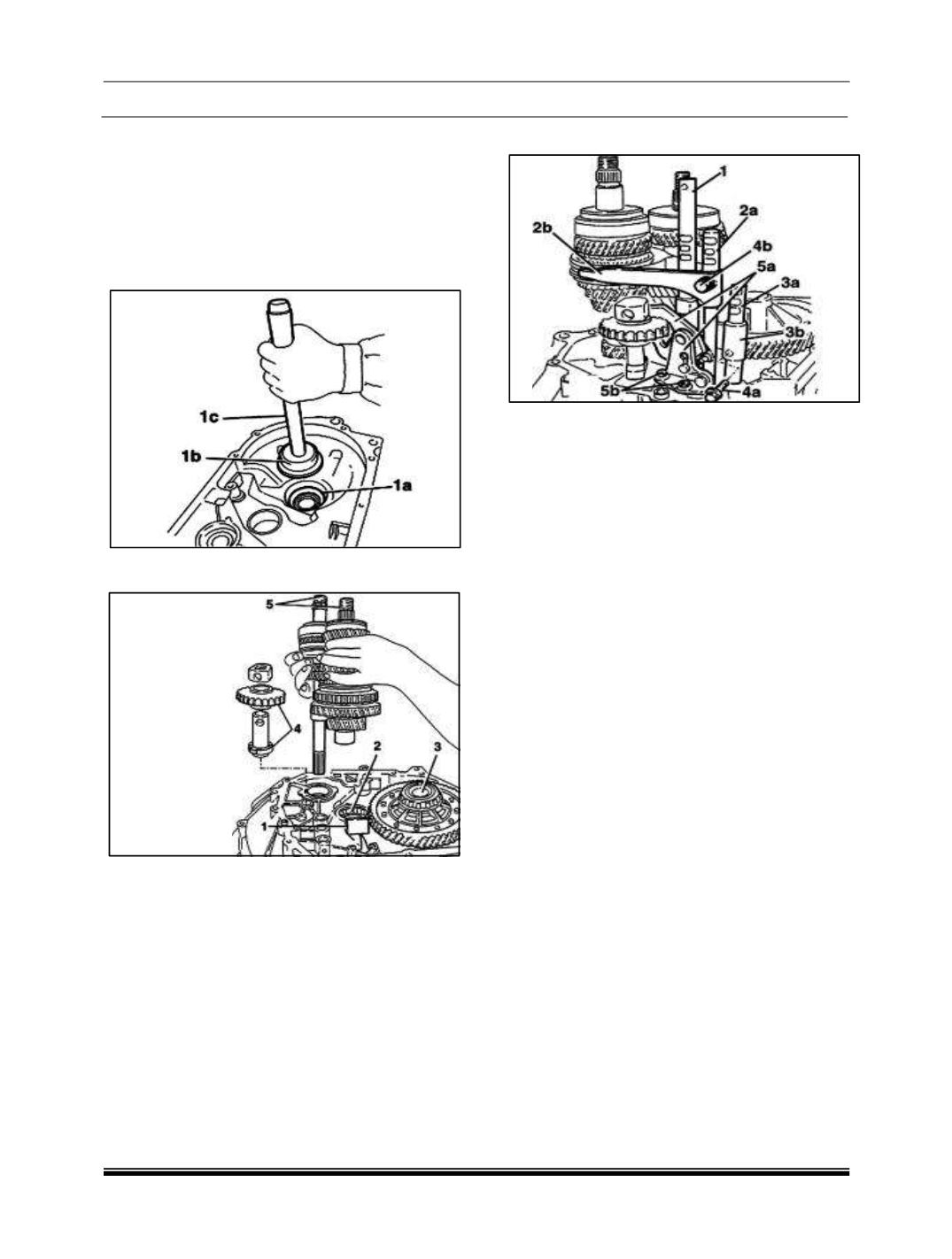

INSTALLATION

1. Fit the guide pin for fitting Reverse and secure

it with exterior staking.

2. Fit the differential mounting bearing outer

races (1a) using tools (1b) 287458902617

(Fitting tool) and (1c) 287458902618 (Grip).

3. Fit the magnet (1).

4. Fit the lay shaft (2) front bearing.

5. Fit the differential (3) assembly.

6. Fit the reverse idler gear (4).

NOTE: Make

sure that the gear engagement

teeth are facing downwards.

7. Fit the main and lay shaft assemblies (5) at the

same time.

8. Fit the gear engagement safety pawls using a

suitable drift.

9. Fit the 5th speed and reverse drive rod (1).

10.Fit the 3rd - 4th speed control fork (2a) and the

control rod (2b).

11.Place the safety pawl on the rod before fitting it

in its housing

12.Remove the 1st-2nd speed drive rod (3a)

together with the fork (3b).

NOTE

To facilitate installation, move the 1st-

speed control rod in the arrowed direction.

13.Tighten the M6 bolts securing the 1st-2nd

speed control forks (4a) and the M6 bolts 3rd-

4th speed control rods (4b), both to a specified

torque of1.5 ~ 1.9 da Nm.

14. Fit the reverse control fork mounting bracket

(5a) and secure it tightening the M6 bolts (5b)

to torque of 8.5 ~ 11.1 da Nm.

15.Place all the gear control forks in neutral.

16.Apply sealant to the contact surfaces between

the manual TRANSAXLE bell housing and the

TRANSAXLE casing.

17.Fit the TRANSAXLE casing on the manual

TRANSAXLE bell housing.

NOTE

Keep the gear selector/engagement

lever upwards and check that the gear selector

engages in the 3rd-4th speed control fork.

18.Tighten the TRANSAXLE casing M8 bolts to

Torque of 2.1 ~ 2.6 Kgm

19.Fit the gear control rod positioning plugs

20.Tighten the reverse shaft M8 bolt to the

recommended torque of 2.9 ~ 3.6 Kgm.

21.Fit the reversing light switch.

22.Fit the main and lay shaft rear bearing circlips.
