DRIVETRAIN C549
36

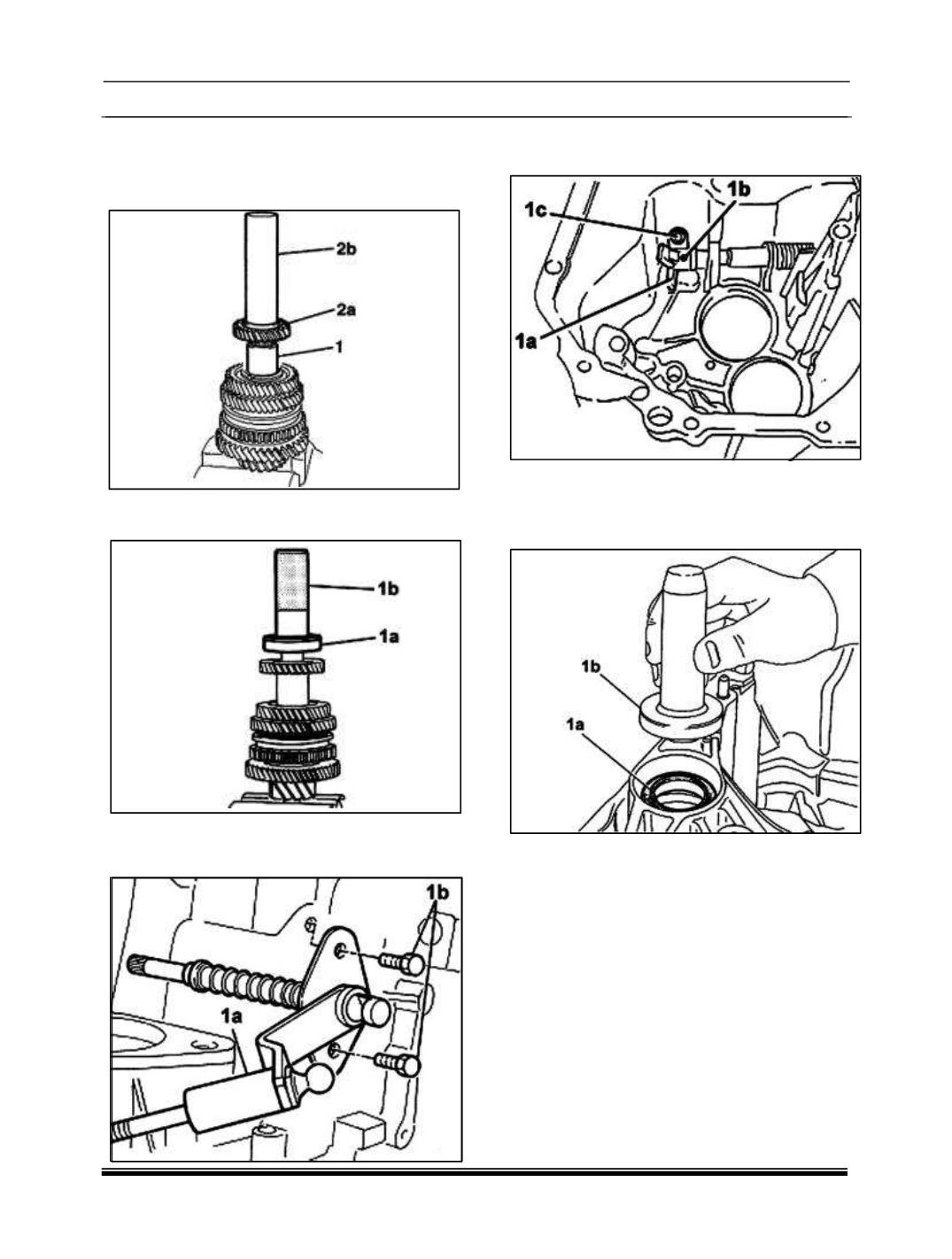

13.Fit the spacer (1) between the 3rd speed
driven gear and the 4th speed driven gear.
14.Fit the 4th speed driven gear (2a) using the
tool (2b) 287458902610 (Fitting Tool).
15.Fit the rear bearing (1a) using the tool
287458902616 (Fitting Tool) (1b).
16.Fit the gear selector/engagement lever (1a)
and secure it tightening the M8 bolts (1b) to
torque of 2.1 ~ 2.6 da Nm.
17.Fit the gear selector (1a) and secure it using
the pin (1b) and the bolt (1c).
18.Fit a new engine side oil seal (1a) for the
manual TRANSAXLE bell housing using the
tool (1b) 287458902611 (Fitting tool).
