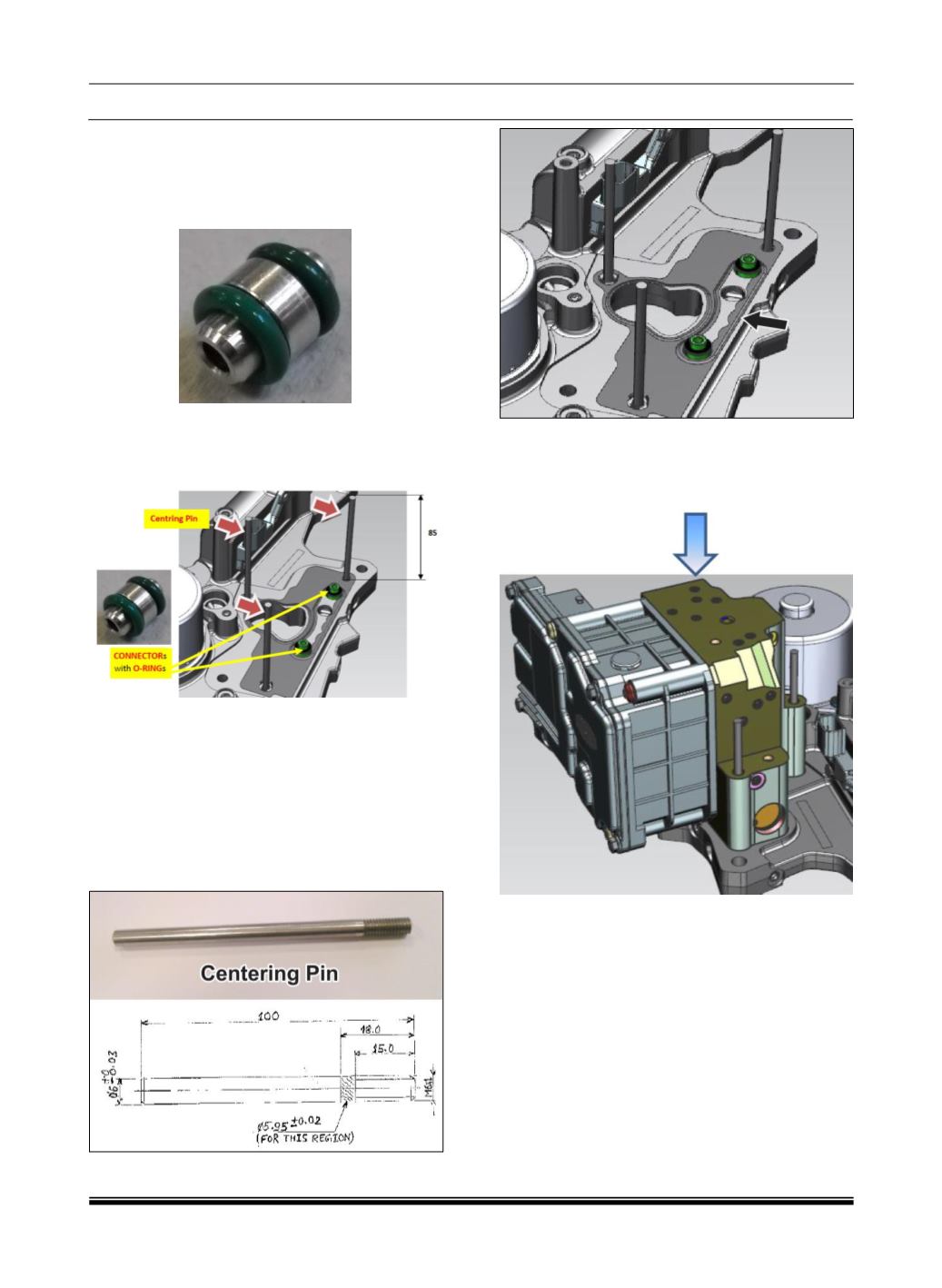

99 / 561
AMT KIT
19
spare gasket, with care to avoid
contamination from foreign materials (dust,
metal burrs, etc.) or surface damages.
Assemble the O-rings on the connectors.
Mount the connectors with O-rings in their
“Power Unit Base Plate” seats, after
lubrication with new ‘CS Speed’ oil.
Lubricate with new ‘CS Speed’ oil the
“Mechatronic Gear Actuator” seats for
connectors with O-rings.
Assemble the gasket on the “Mechatronic
Gear Actuator” with the correct orientation,
inserting the centering pins into the fixing
holes of the “Mechatronic Gear Actuator”
body.
Position the “Mechatronic Gear Actuator” with
gasket over the “Power Unit Base Plate”,
using for reference the threaded rods and
moving it parallel towards the mating surface.
When the “Mechatronic Gear Actuator” body
seats come in contact with O-rings push it
slowly with appropriate load to complete the
assembly.
Unscrew the rods and screw without tighten
the three screws for fixing the “Mechatronic
Gear Actuator” on “Power Unit Base Plate”.
