D. DC MOTOR REMOVAL AND RE-FITMENT:
Removal
Remove Oil tank (Refer oil tank removal
procedure).
Disconnect the connector of the wiring
harness from the ‘DC Motor’.
Unscrew the three fixing screws M5x15.
Remove the electric ‘DC Motor’, the ‘Sponge’
and the ‘Oldham Joint’.
INSTALLATION:

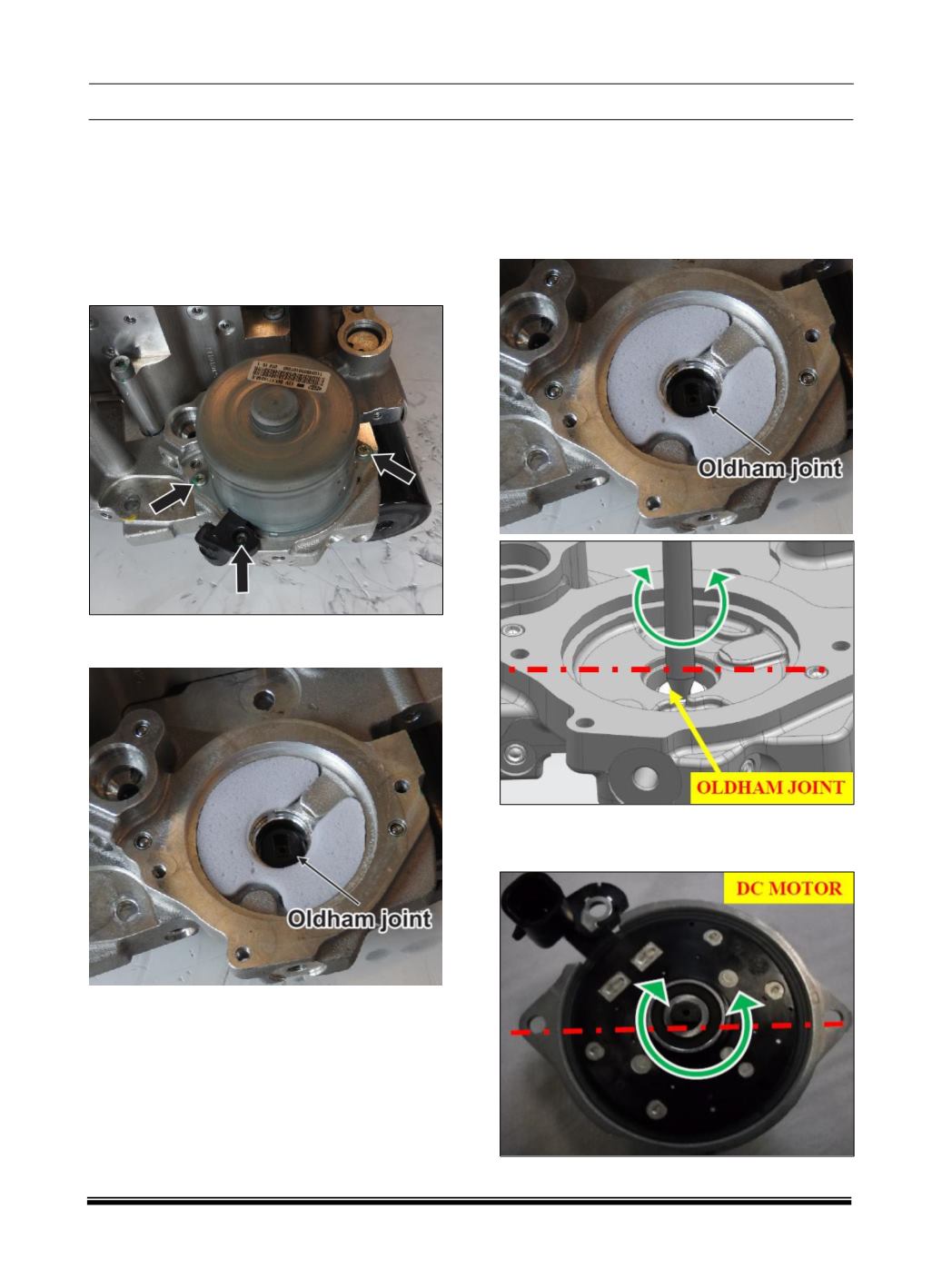

Insert the ‘Oldham Joint’ in the pump shaft.
Using a screw driver, turn the joint as shown
below, to align its slot with the axis passing
through the two fixing threaded holes at 180°
on the ‘Power Unit Base Plate’ body.
Turn the ‘Dc Motor’ shaft by hand as shown
below, to align it with the axe Passing
through the two fixing hole at 180°.
