AMT KIT
14

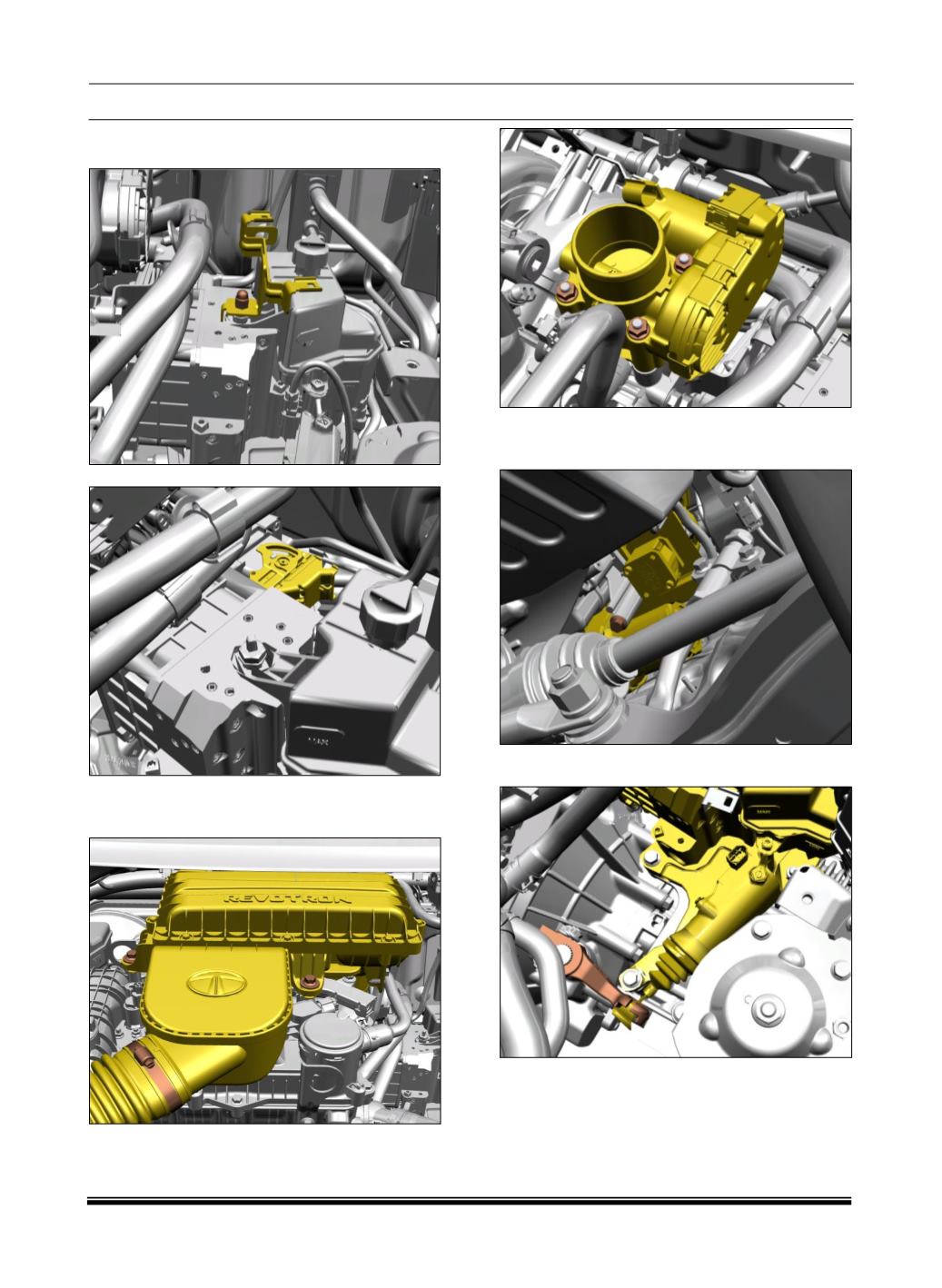

9. Remove wiring harness mounting bracket on
AMT kit.
10. Disconnect TCU connector.
11. Disconnect wiring harness connector of AMT
kit.
12. Remove air filter connection & mounting.
13. Remove Air filter.
14. Loosen & remove throttle mounting bolts &
remove throttle.
15. Lift the two post lift.
16. Loosen & remove the one mounting bolt of
AMT kit from bottom side.
17. Lower the two post lift.
18. Remove Transmission (Trans link) link cable.
19. Loosen & remove the two mounting bolts &
two nuts of AMT kit on gearbox from engine
compartment.
