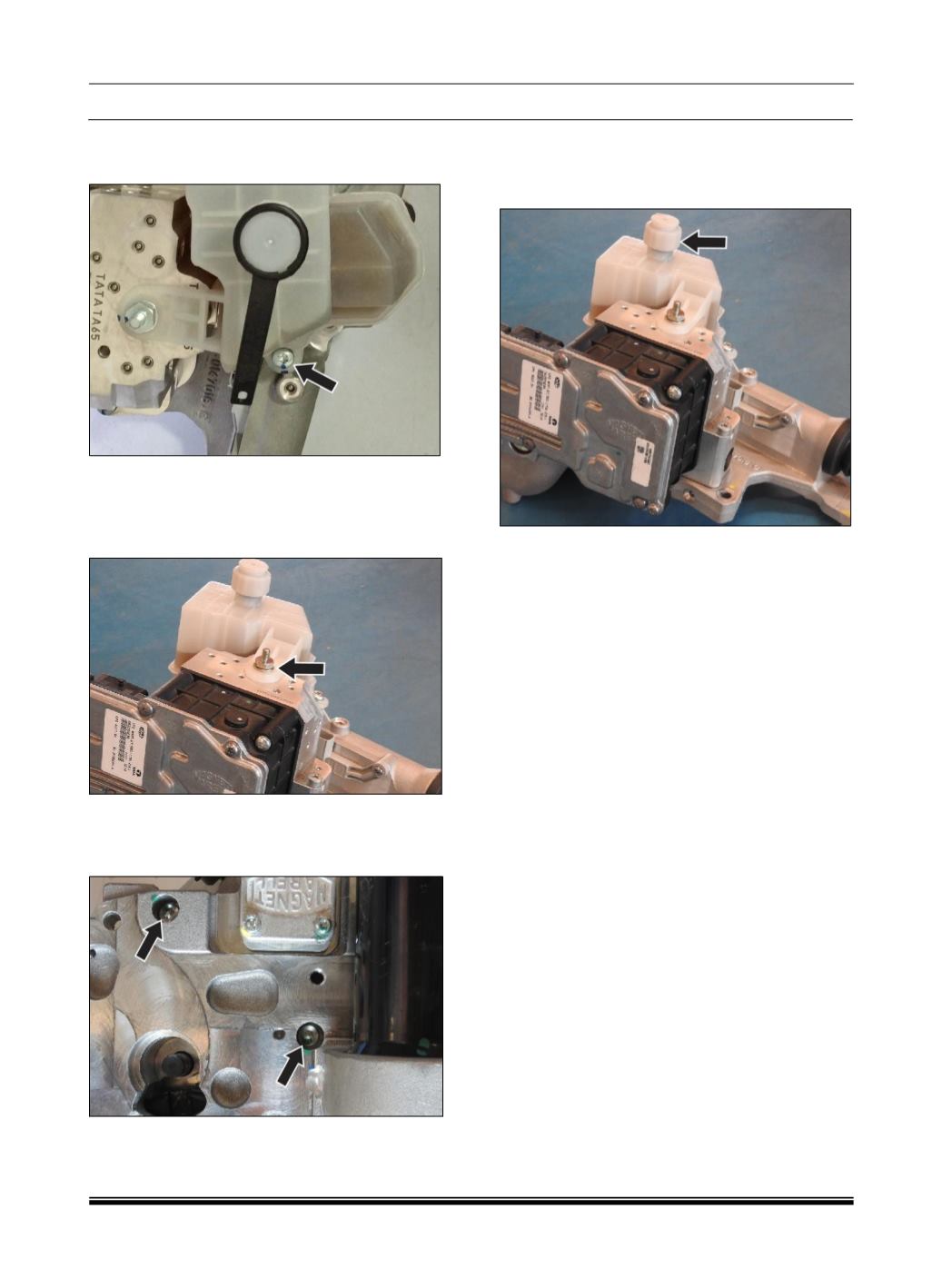

Screw the SCREW M6x20 for fixing OTK on

PWU body at the right torque (10 ± 1 [Nm]).



Place the WASHER M8 on top of the OTK

forth mounting arm & Screw the STUD M8-M6

for fixing OTK on MGA body at the right

torque (20 ± 1 [Nm]).



Screw the SCREW M6x20 for fixing OTK

under PWU body at the right torque (10 ± 1

[Nm]).



Fill the OTK with Tutela CS SPEED oil

(0.45Kg), at the level “@ 0 bar” (no pressure

in the hydraulic circuit) as indicated on the

overall drawing and restore it after the purge

procedure



Screw the OIL TANK CAP at the right torque.
