TA65 Star AMT
24
11.

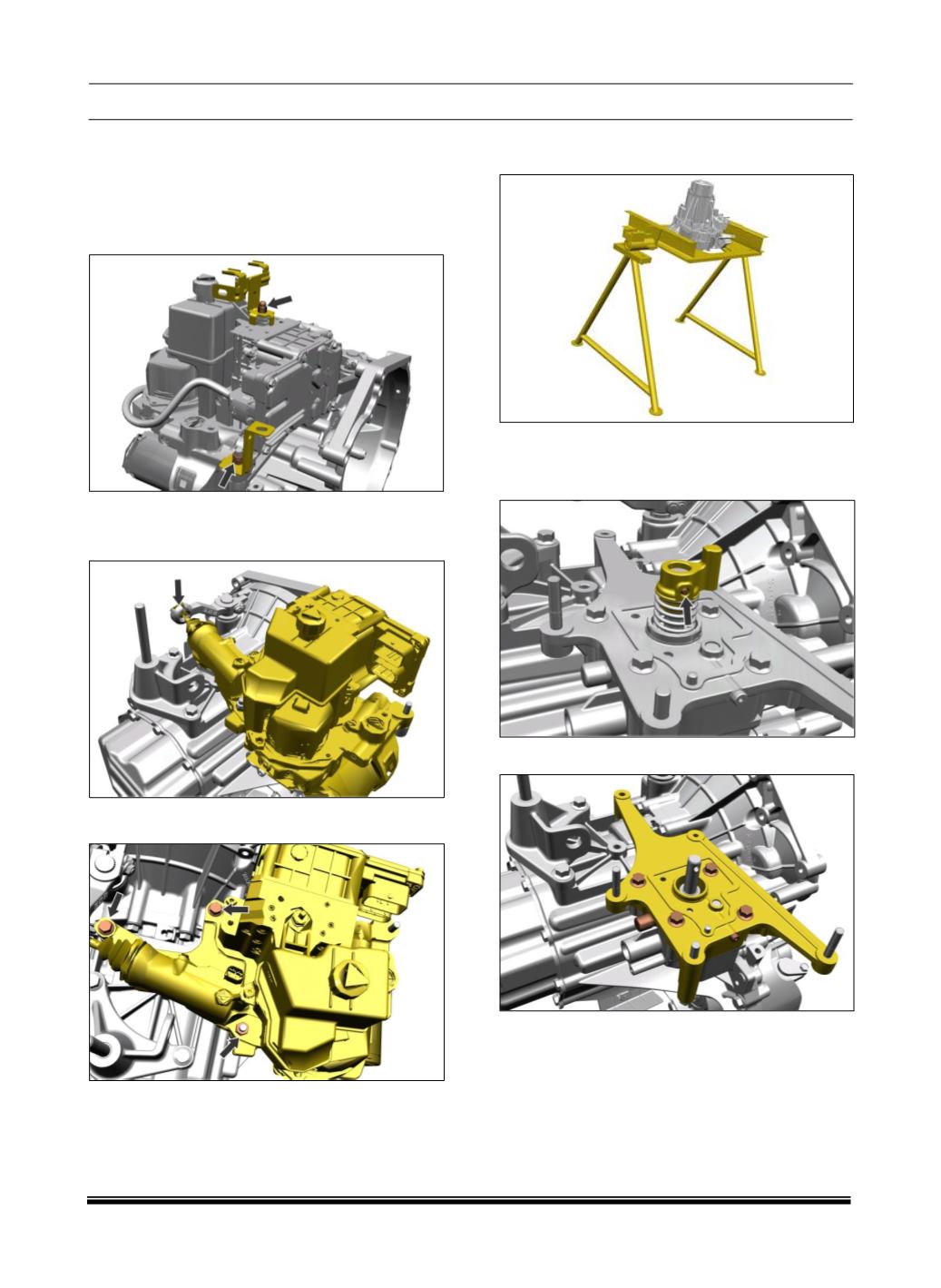

TRANSAXLE TA65 STAR AMT (ON
BENCH) DISASSEMBLY:
1. Ensure that oil is drained completely from the
transaxle before mounting on the work stand.
2. Remove domed cap nut & Nyloc nut take out
Brackets as shown
3. Remove all electrical connection from AMT
Kit.
4. Remove clutch interface as shown
5. Remove all mounting Bolts & Nyloc nut from
top & bottom side from AMT kit as shown
6. Lastly take out AMT Kit from Transaxle.
7. Fix the mounting plate (2702 5890 2610) on
work stand 2573 5890 3701 (19a) by using
hex bolt in 3 holes of 14mm dia. on the
mounting plate.
8. Mount transaxle face on mounting plate and fix
it by three hex bolts of M10 size.
9. Remove spiral key from AMT & take out
interface finger as shown
10.Remove AMT top cover assembly.
