TA65 Star AMT
28

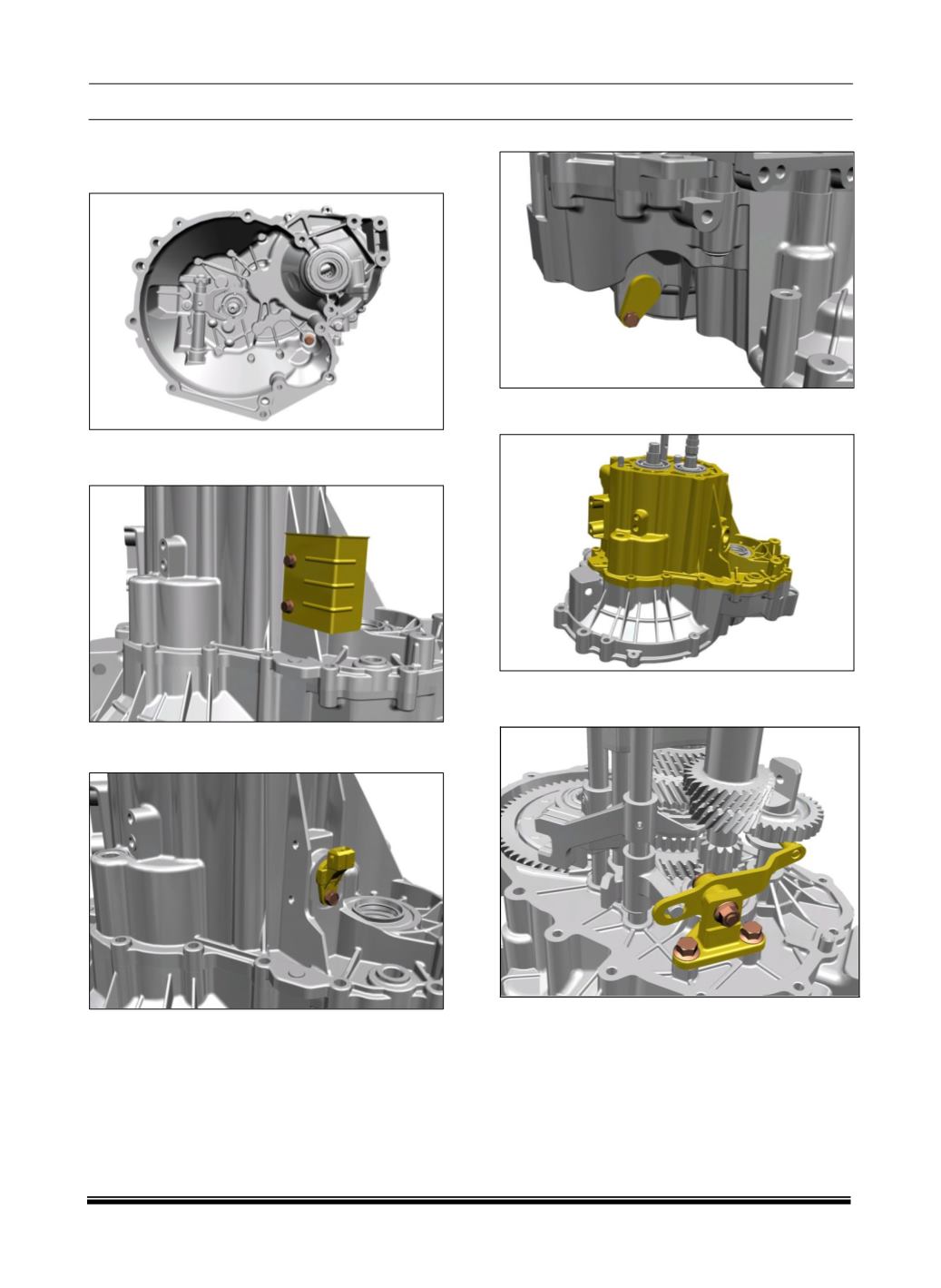

32. Rotate the transaxle upside down. Remove
the hex flange bolts provided at clutch
housing.
33. Remove clutch speed sensor mounting
bracket.
34. Remove hex screw & take out clutch speed
sensor.
35. Remove vehicle speed sensor as shown
36. Remove the gear box housing (rear half) by
gently tapping with a mallet.
37. Remove reverse idler shaft, & Reverse lower
bracket Assembly.
