26 / 561
TA65 Star AMT
19

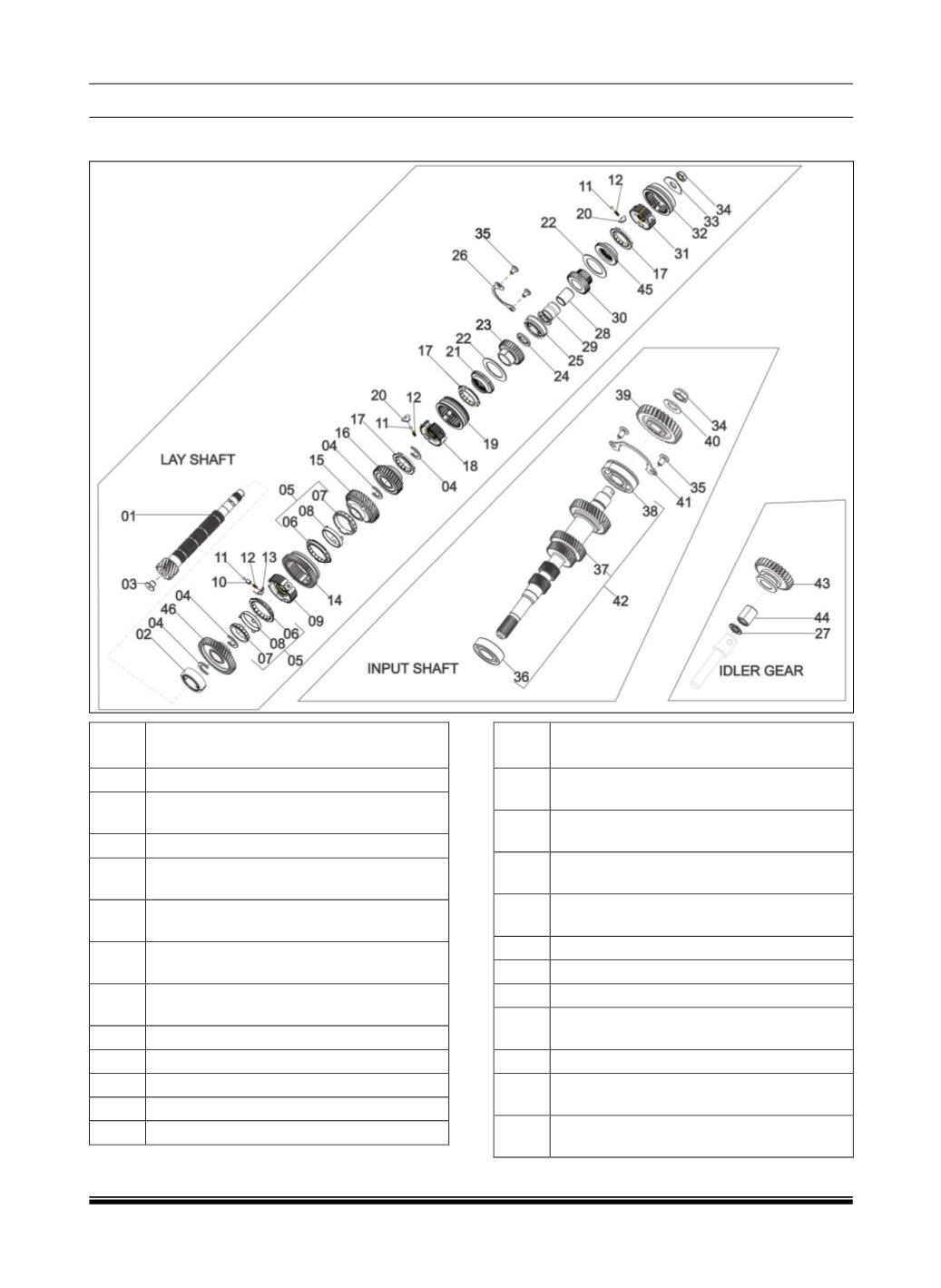

EXPLODED VIEW LAY & INPUT SHAFT
SR.
NO.
DESCRIPTION
01
LAYSHAFT (65/16)
02
CYLINDRICAL ROLLER BRG
(L/S);FAG
02
CYLINDRICAL ROLLER BRG.(L/S);SKF
02
CYLINDRICAL ROLLER BEARING
(L/S) (ABC)
02
CYLINDRICAL ROLLER BEARING
(L/S);NRB
02
OFFER DRG.CYLD.ROLLER BRG.(L/S
FRT.END)
02
CYLINDRICAL ROLLER BEARING
(TEXSPIN)(ADAPTOR SHAFT
03
BUSH (LAYSHAFT)
04
CIRCLIP (LAYSHAFT)
04
CIRCLIP (LAYSHAFT)
04
CIRCLIP (LAYSHAFT)
04
CIRCLIP (LAYSHAFT)
SR.
NO.
DESCRIPTION
05
ASSY TWIN CONE 1ST/2ND (DIVGI-
WARNER)
06
SYNCHROCONE OUTER (1st/2nd)
BORG-WARNER
07
INTERMEDIATE CONE (1st/2nd)
BORG-WARNER
08
INNER CONE (1ST/2ND) BORG-
WARNER
05
ASSY TWIN CONE 1ST/2ND
06
SYNCHRO CONE;OUTER;1ST/2ND
07
INTERMEDIATE CONE 1ST/2ND (INA)
08
INNER CONE 1ST/2ND WITH
CARBON LINING
05
"OFFER" ASSY TWIN CONE 1ST/2ND
06
"OFFER DRG" SYNCHROCONE
OUTER 1st/2nd
07
"OFFER DRG" INTERMEDIATE CONE
1ST/2ND
