TA65 Star AMT
21
10.

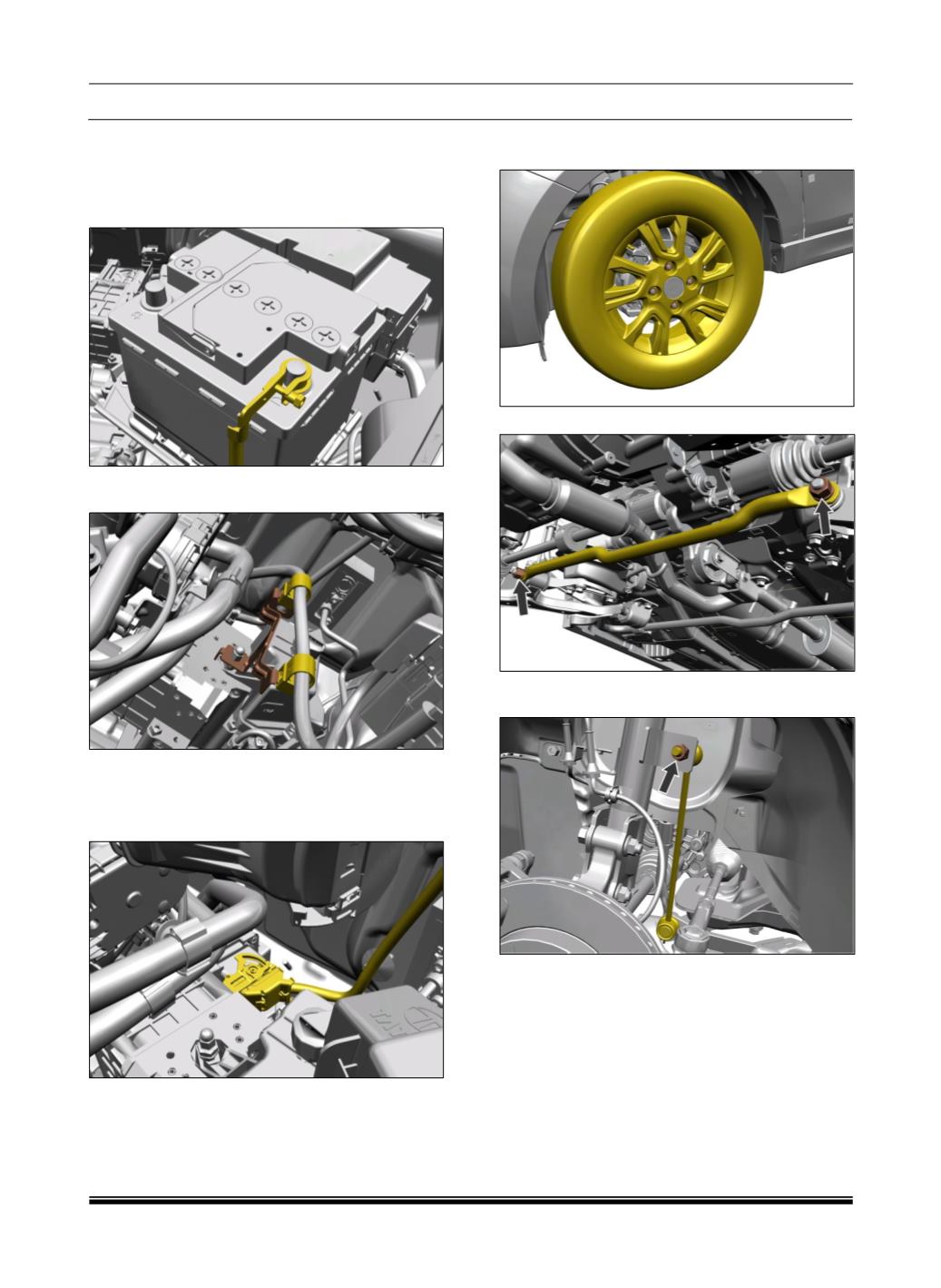

REMOVAL OF TRANSAXLE FROM
VEHICLE:
Position the vehicle properly on the two post lift
1. Remove Battery terminal as shown.
2. Disconnect all electrical connection & take out
Battery.
3. Remove Mtg.screws & take out Battery Tray
by loosening Fuse Box.
4. Remove Translink cable or AMT coupler as
shown below
5. Remove Battery cable from Bracket.
6. Position the vehicle properly on the two post
lift and remove Tyres as shown
7. Remove Tie Rod on LH & RH side.
8. Remove Suspension Mtg. vertical link (antiroll
bar) from Strut on LH & RH side.
