1.2L REVOTRON ENGINE
105

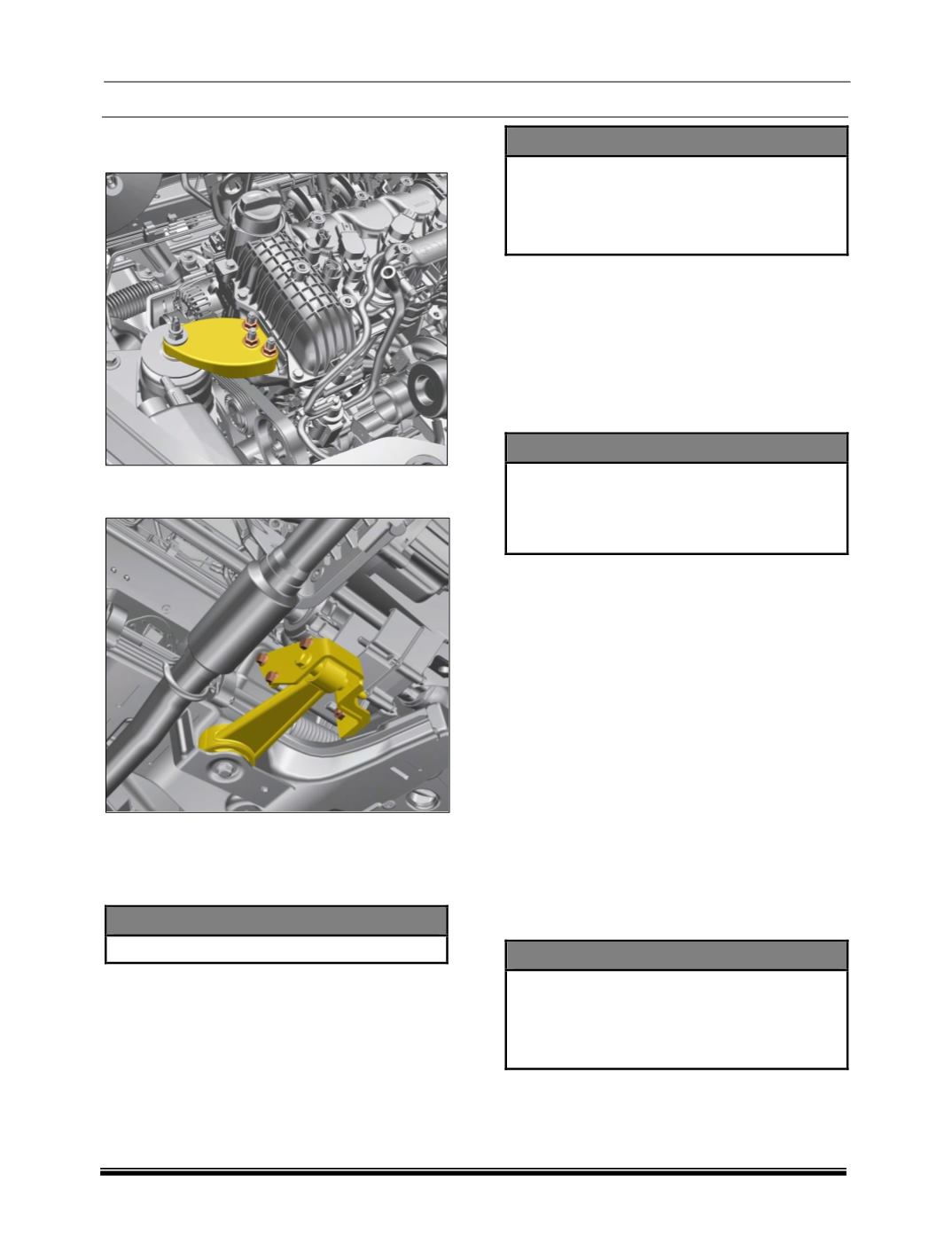

31. Remove the Engine A-mount arm mounting
nuts (3 nos) from engine side.
32. Remove the Engine “C” mount by removing
the mounting bolts.
33. Now move the two post lift upwards and place
the support stand under the engine. (Use a
suitable wooden block or other support for
additional height as necessary).
SPECIAL TOOL
Engine Support stand -:
5424 5890 24 01
34. Now slightly lower the lift until engine and
transaxle assembly is securely placed / fix on
the support stand.
35. Disconnect the lifting crane from the engine.
CAUTION
Use care when raising the vehicle off the
engine and transaxle assembly. Verify all
components and electrical connections are
disconnected prior to raising the vehicle, or
vehicle damage occur.
36. Now carefully move the lift up.
37. Take out the engine and transaxle assembly
along with support stand.
38. Remove the starter motor, alternator along
with its mounting brackets.
39. Remove the transaxle from the engine.
40. Fix the LH & RH mounting brackets to the
engine.
SPECIAL TOOL
LH Mounting Bracket -:
5424 5890 24 03
RH Mounting Bracket -:
5424 5890 24 02
41. Safely lift the engine with the help of crane
and fix it on overhaul stand.
Engine Installation
1. Engine installation is generally reverse of
removal. Make certain all hardware is
tightened to appropriate torque specification.
2. Prior to installing the engine, inspect the
condition of the rubber on the engine mounts.
Replace the engine mounts if the rubber is
damaged.
3. Install the starter motor, AC Compressor,
alternator along with its mounting brackets.
4. Mount the transaxle back onto the engine.
Tighten the bolts with specified torque.
5. With the vehicle raised on the vehicle lift
hoist, place the engine underneath the
vehicle,
aligned
with
the
engine
compartment.
CAUTION
Use care when lowering the vehicle body to
the engine and transaxle assembly. Verify
all the engine and other components will
not make direct contact or vehicle damage
will occur.
6. Slowly and carefully lower the vehicle body
over the engine.
7. Connect the lifting crane to the engine with a
chain / belt. Raise the hoist slightly to apply
