9.2.26 FRONT SEAT BELT



FOR RETRACTOR PRETENSIONER LOAD

LIMITER (RPLL)

REMOVAL

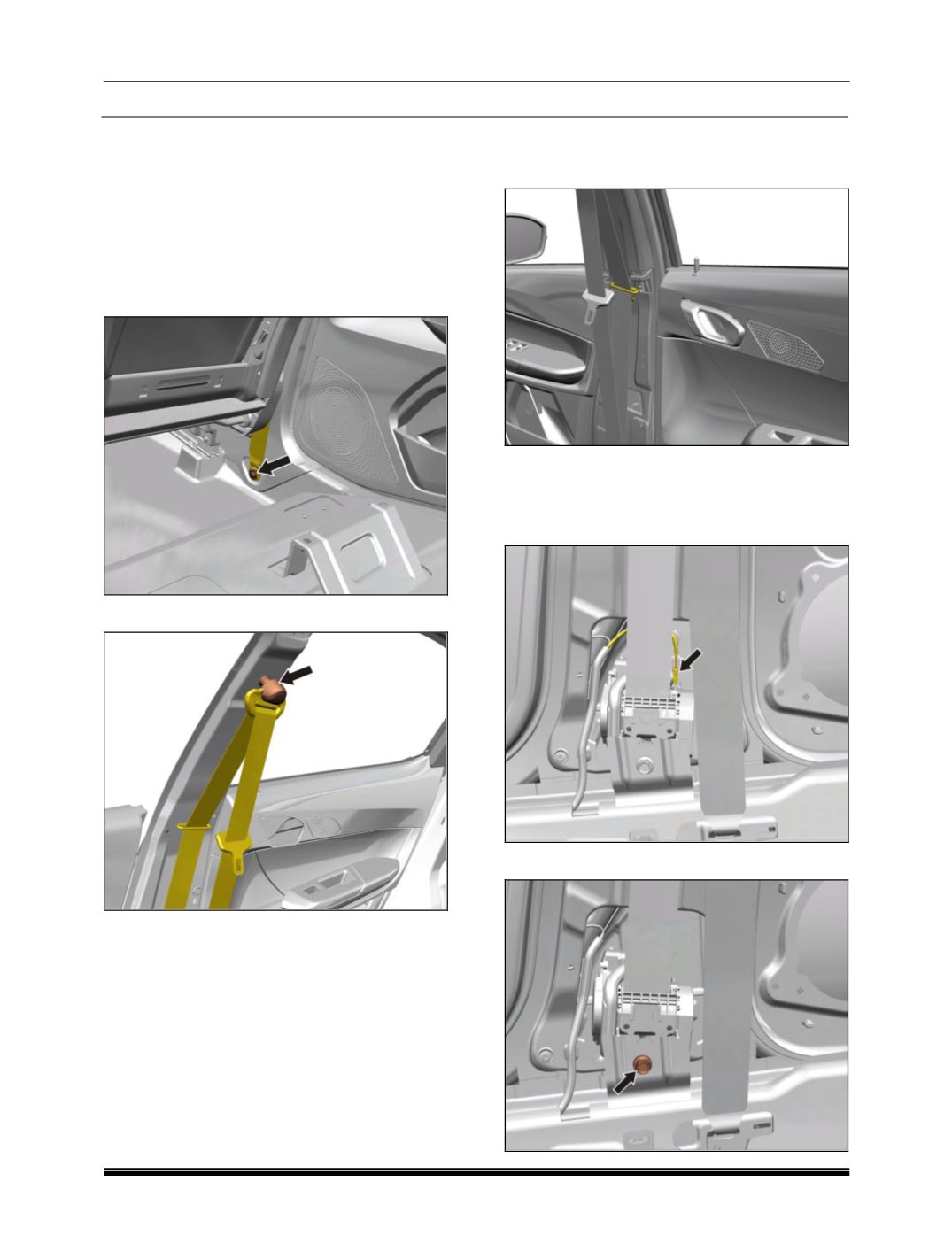

1. Fold the front seat to have easy access for the

belt removal.

2. Loosen and remove the lower anchorage bolt

of seat belt.

3. Remove front seat belt anchor mounting bolt.

4. Remove the web guide clip by rotating in the

anti-clockwise direction and taking it out from

the guide.

5. Remove lower “B” pillar trim.

(For procedure

refer “B” pillar trim removal procedure in Body

section).

6. Disconnect the electrical connection of RPLL.

7. Loosen and remove the RPLL mounting bolt.
