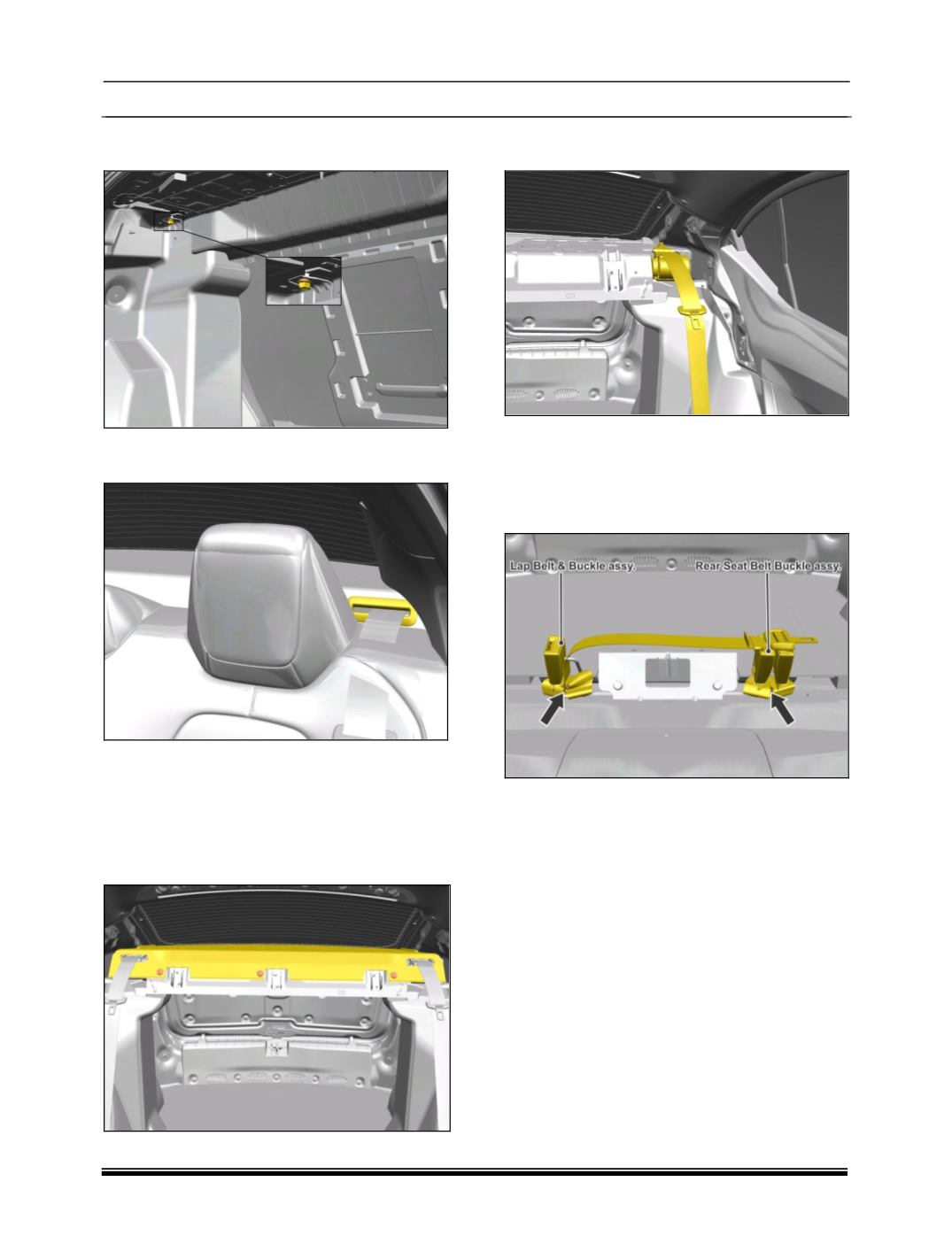

4. Loosen and remove the retractor mounting

bolt.

5. Remove the rear seat belt bezel from parcel

shelf and similarly take it out from the belt.

6. Remove the rear seat back.

(For removal refer

rear seat removal process).

7. Remove the “C” pillar upper trim.

(For removal

refer C pillar removal process).

8. Remove parcel shelf by prying out the

mounting tree clips.

9. Take out retractor assembly along with the

belt.

10.Follow the similar procedure for the other side

rear seat belt.

11.Remove the anchorage bolts and take out the

lap belt and buckle assembly along with rear

seat belt’s buckle assembly.

FITMENT

For fitment follow reverse procedure of removal.
