TIAGOR

BODY

FITMENT

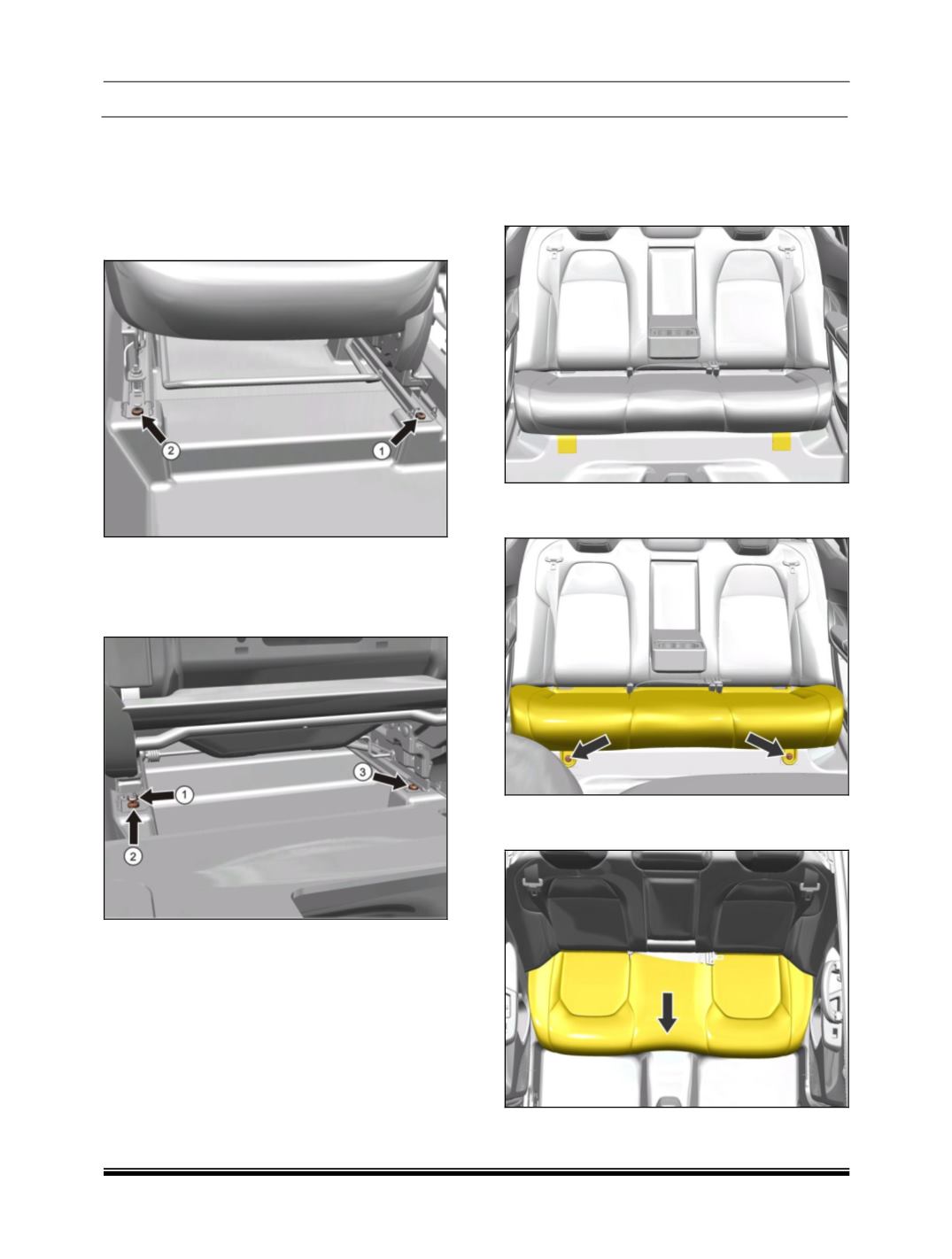

1. Locate the front seat assembly in BIW using

Locating Pin.

2. Fix the seat assembly at front by tightening two

mounting screws. Follow the sequence shown

below.

3. Slide the front seat forward most position.

4. Fix the seat assembly at rear by tightening

three mounting screws. Follow the sequence

shown below.

9.2.24 REAR ROW SEAT

REMOVAL

1. Flip open the access flap to the bottom seat

mounting.

2. Loosen and remove the bottom seat two

mounting bolts.

3. Slide out the bottom seat and take it out from

the hook.
