47

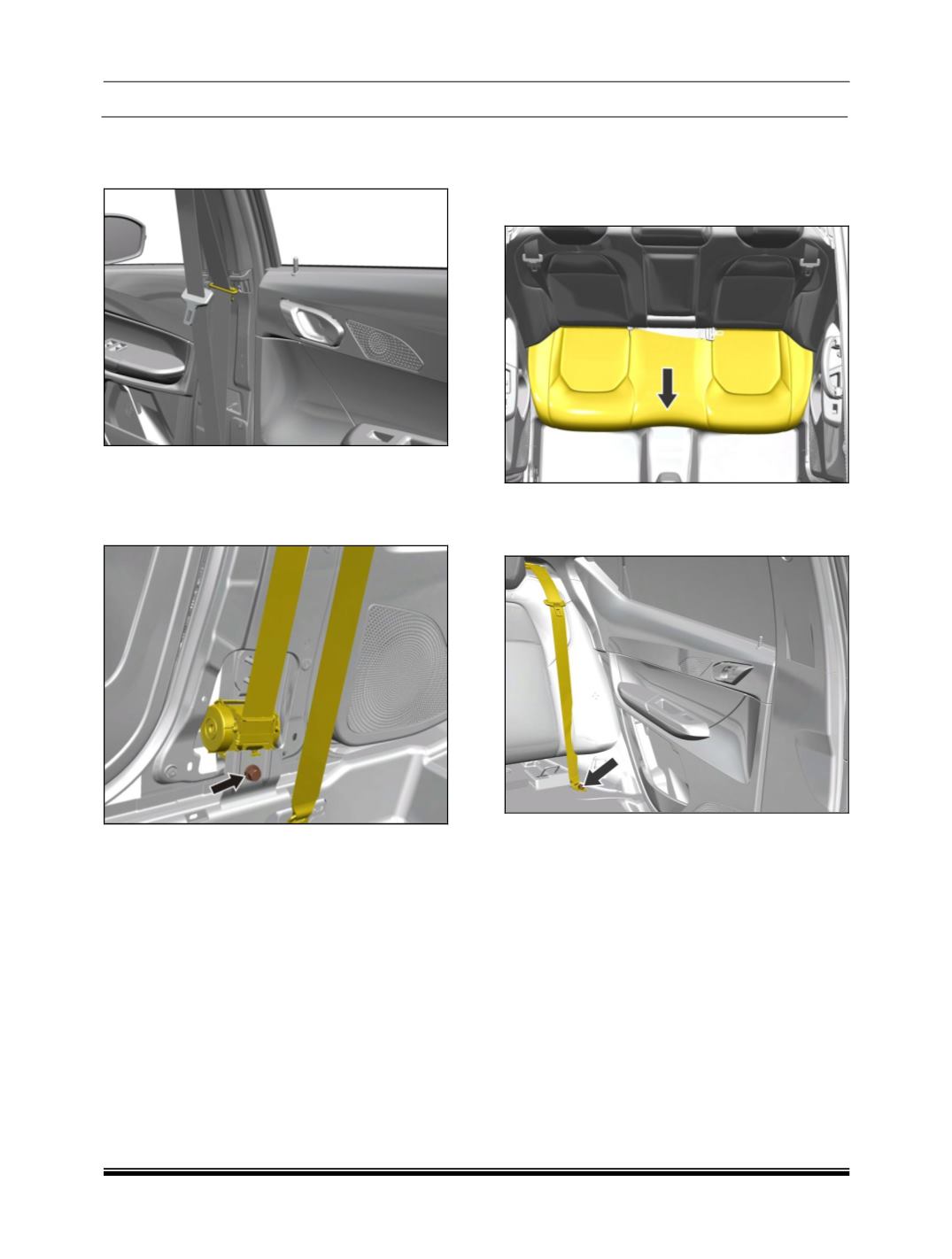

4. Remove the web guide clip by rotating in the

anti-clockwise direction and taking it out from

the guide.

5.

Remove lower “B” pillar trim.

(For procedure

refer “B” pillar trim removal procedure in Body

section).

6. Loosen and remove the ELR mounting bolt.

7. Remove the front seat belt assembly.

FITMENT

For fitment follow reverse procedure of removal.

9.2.27 REAR SEAT BELT

REMOVAL

1. Remove the rear seat cushion.

(For removal

refer rear seat removal process).

2. Remove the bottom anchorage bolt of the seat

belt and take out the complete seat belt

assembly.

3. Open the trunk lid to access the top mounting

bolts of retractor assembly.
