TRUNK LID LOCK

REMOVAL

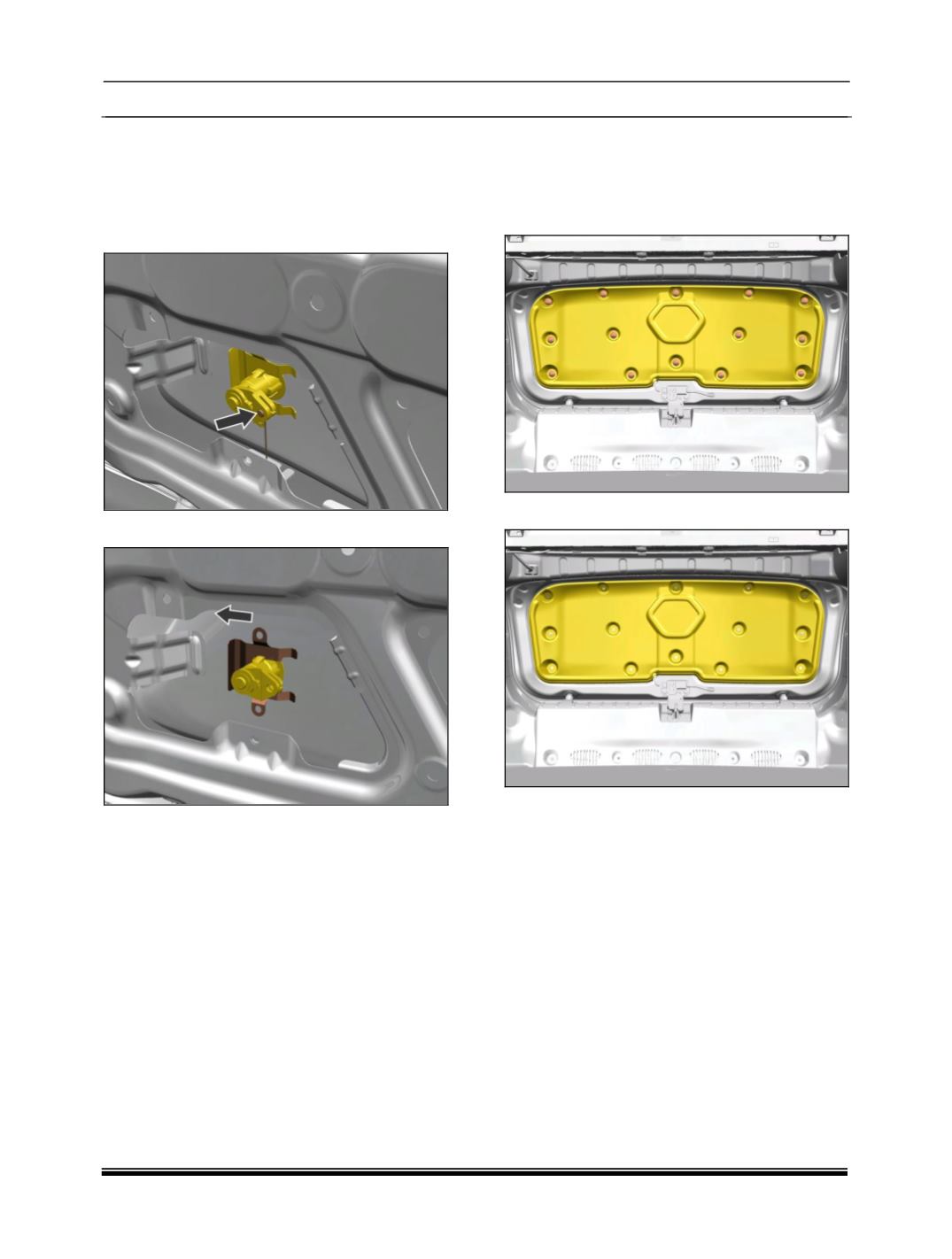

1. Remove the trunk lid inner trim.

2. Disconnect the link between latch and the Lock

Barrel.

3. Slide out the locking plate in shown direction.

4. Pull out the trunk lid lock from outside.

FITMENT

For fitment follow reverse procedure of removal.

NOTE

Check the condition of the trunk lid lock. Replace

the lock if broken or damaged.

9.2.20 TRUNK LID TRIM

REMOVAL

1. Open the trunk lid.

2. Pry out the mounting tree clips of trunk lid trim.

3. Take out the trunk lid trim.

NOTE

While pulling out the tail gate trim, care should be

taken such that tree clips do not get damage.

FITMENT

1. Match trunk lid trim buttons properly with the

hole.

2. Press trims gently, ensure its proper fitment.
