14

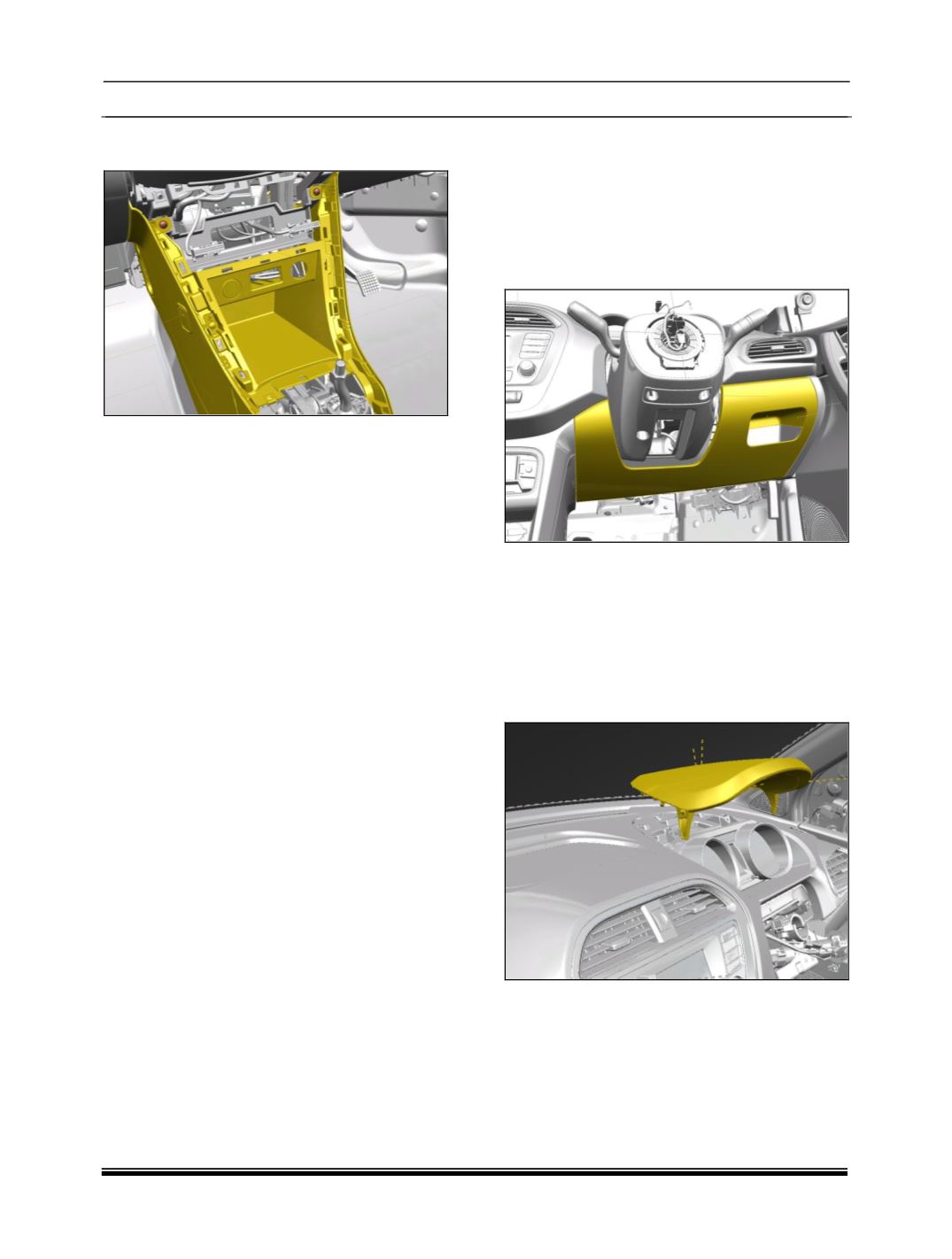

15.Remove all front floor console mounting

screws.

16.Remove all push rivets and clips of front

console and take it out.

FITMENT

For fitment follow the reverse procedure of

removal.

9.2.3

DASHBOARD

SKIN

REMOVAL

PROCEDURE

1. Disconnect the battery terminals.

2. Remove steering wheel with Driver air bag

(If

applicable) (For procedure refer steering wheel

removal process in steering section).

3. Pull out Driver lower panel.

4. Remove nacelle Assembly

. (For removal refer

steering column removal process in steering

section).

5. Remove combination switch assembly and

ignition switch assembly

(For procedure refers

combination switch and ignition switch removal

process in Electrical section).

6. Pry out instrument cluster hood.
