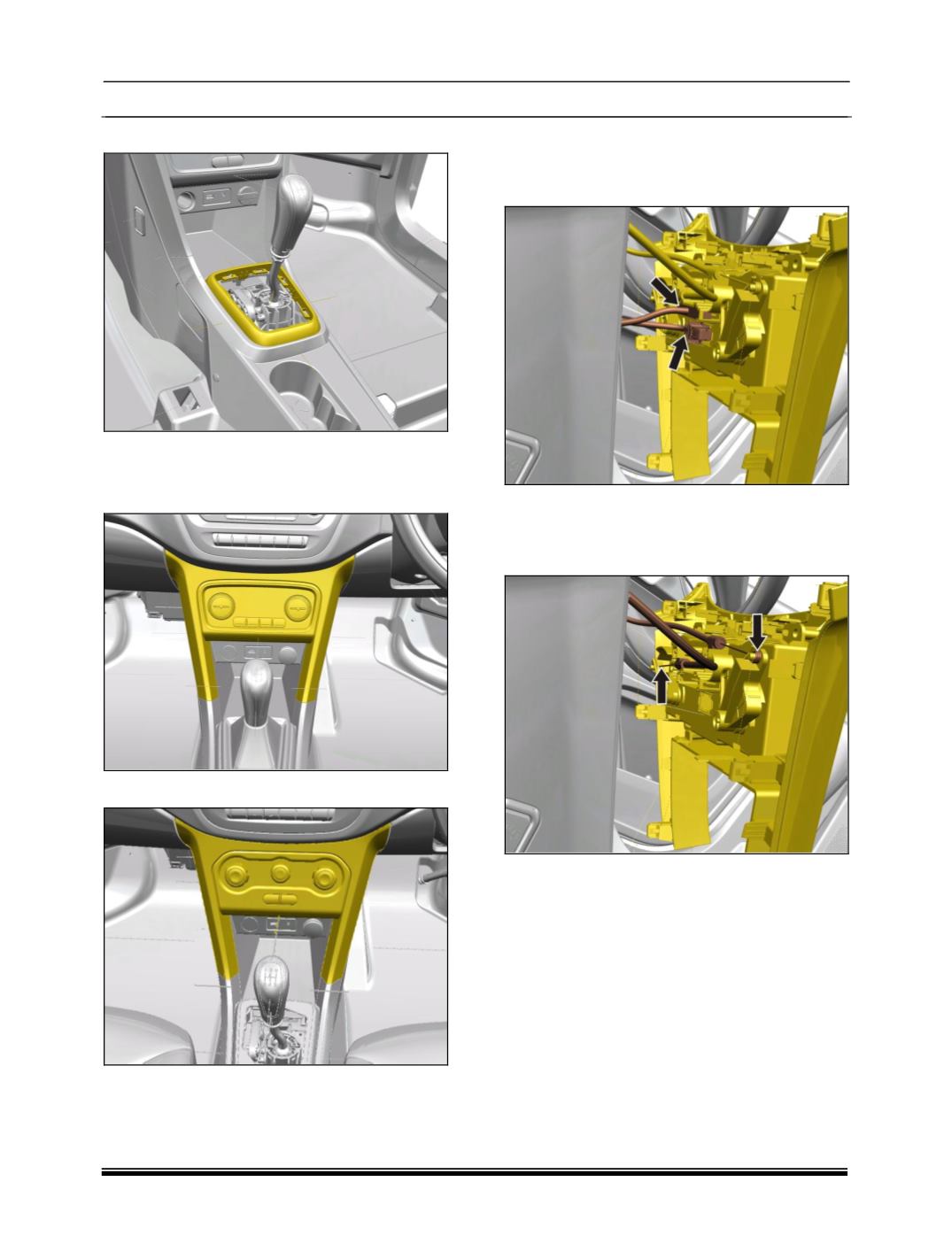

4. Pull out gear shifter bezel.

5. Pull out top console panel along with control

panel.

FOR HIGH END VARIANTS

FOR ALL OTHER VARIANTS

6. Disconnect two electrical connections behind

the control panel assembly.

(This step is

applicable for all variants except the high end

variant)

7. Disconnect two Bowden cable connections

behind the control panel assembly.

(This step

is applicable for all variants except the high

end variant)
