BODY
13

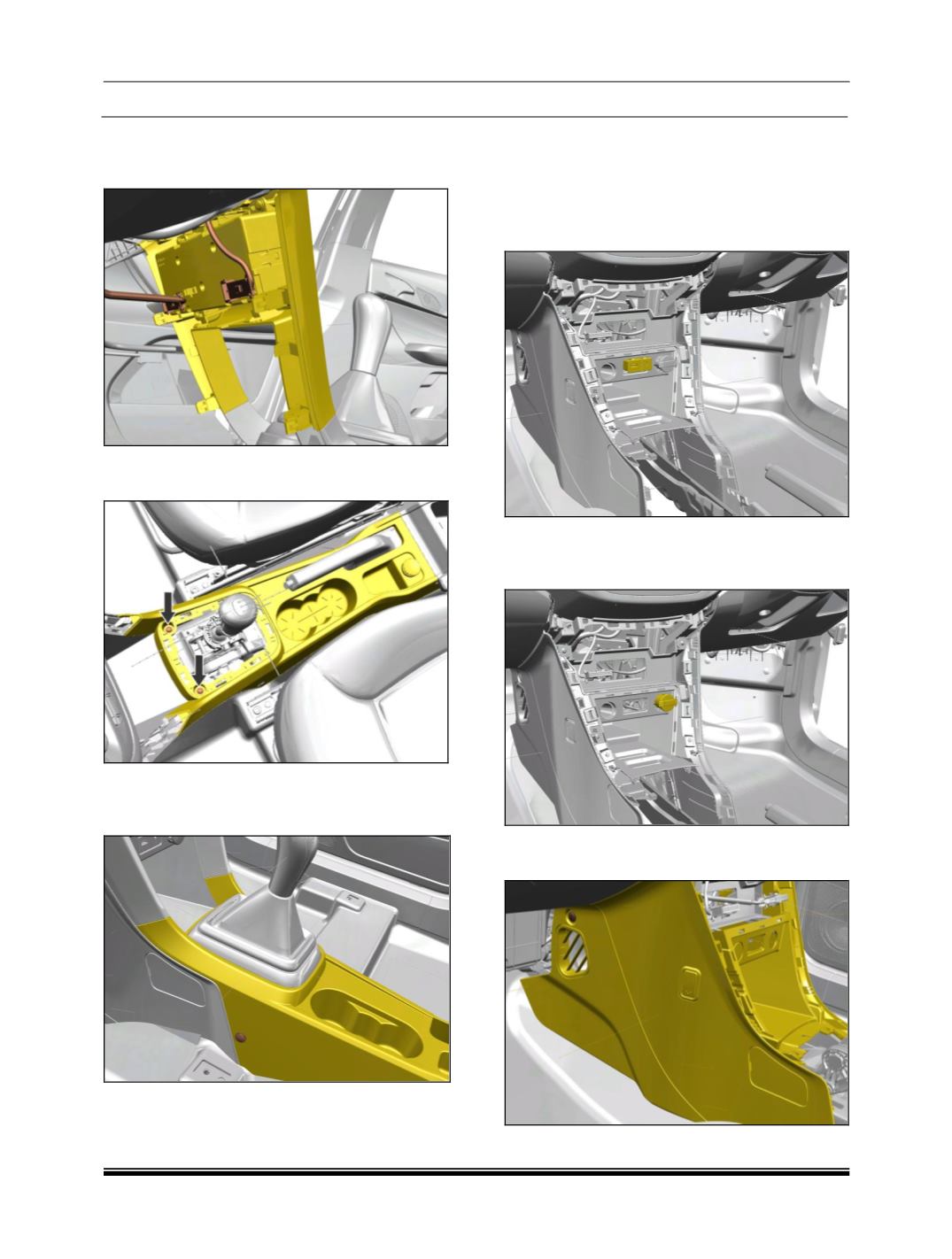

8. Disconnect two electrical connections behind
the control panel assembly.
(This step is
applicable to high end variant only)
9. Remove two rear floor console mounting
screw.
10.Remove all push rivets of rear floor console
and Pull it out from its location to unsnap from
front console.
(LH side Illustrated).
11.Disconnect the electrical connection to the
power socket on the rear floor console.
12.Disconnect USB auxin connectivity module
Assembly.
(For removal refer USB auxin
connectivity module removal process in
Electrical section.)
13.Disconnect complete power socket assembly.
(For removal refer
power socket assembly
removal process in Electrical section.)
14.Pry out the push rivet on the LH side valance
cover.
