TIAGOR

FATC

1.6. FATC SENSOR

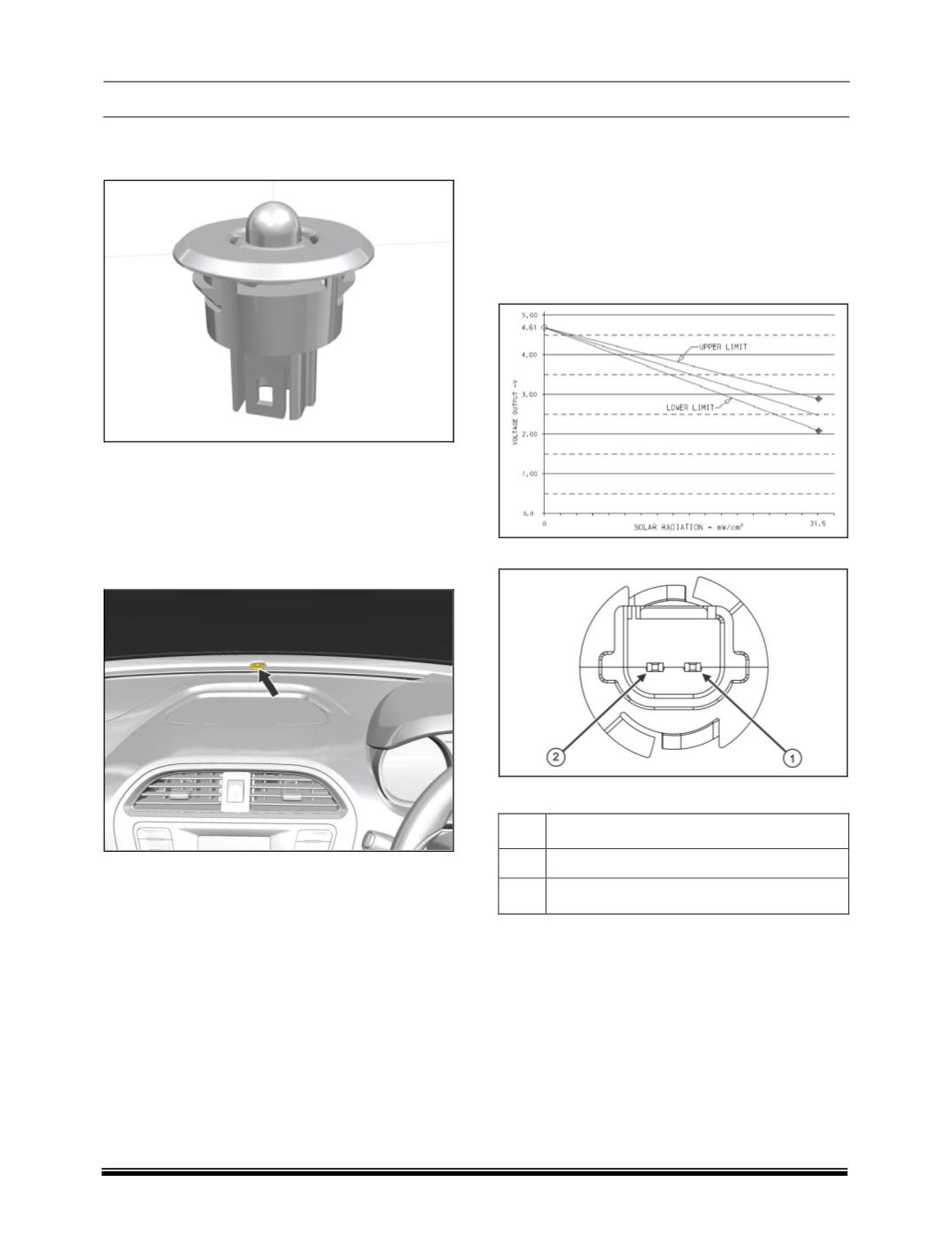

A. SOLAR LOAD SENSOR

Solar load sensor is a photodiode that measures the

relative solar load. It provides the output current pro-

portional to solar heating.

LOCATION

It is fitted on front defrost grill.

INSPECTION

Fit the solar load sensor into its adaptor. Connect the

electrical connection.

Measure response at different intensity and plot

graph of sensor output and intensity.

The plotted graph should approximately match with

following graph.

ONNECTOR DETAILS

PINOUT DETAILS

PIN

DESCRIPTION

Solar sensor Input to control panel

Analog GND
