TIAGOR

FATC

INSPECTION

Measure the resistance between terminals of the sensor at minimum two temperatures. The resistance value

should match with stated values of resistance in table below

T (˚C)

R Gerber (Ω)

Tol (K)

U (V)

-10

16567.3 ± 277.6

± 0.30

2.5261 ± 0.0347

9773.2 ± 118.4

± 0.25

2.2035 ± 0.0310

+10

5953.9 ± 102.8

± 0.36

18366 ± 0.0327

+20

3737.3 ± 79.0

± 0.50

14661 ± 0.0323

+30

2412.0 ± 57.6

± 0.60

11297 ± 0.0295

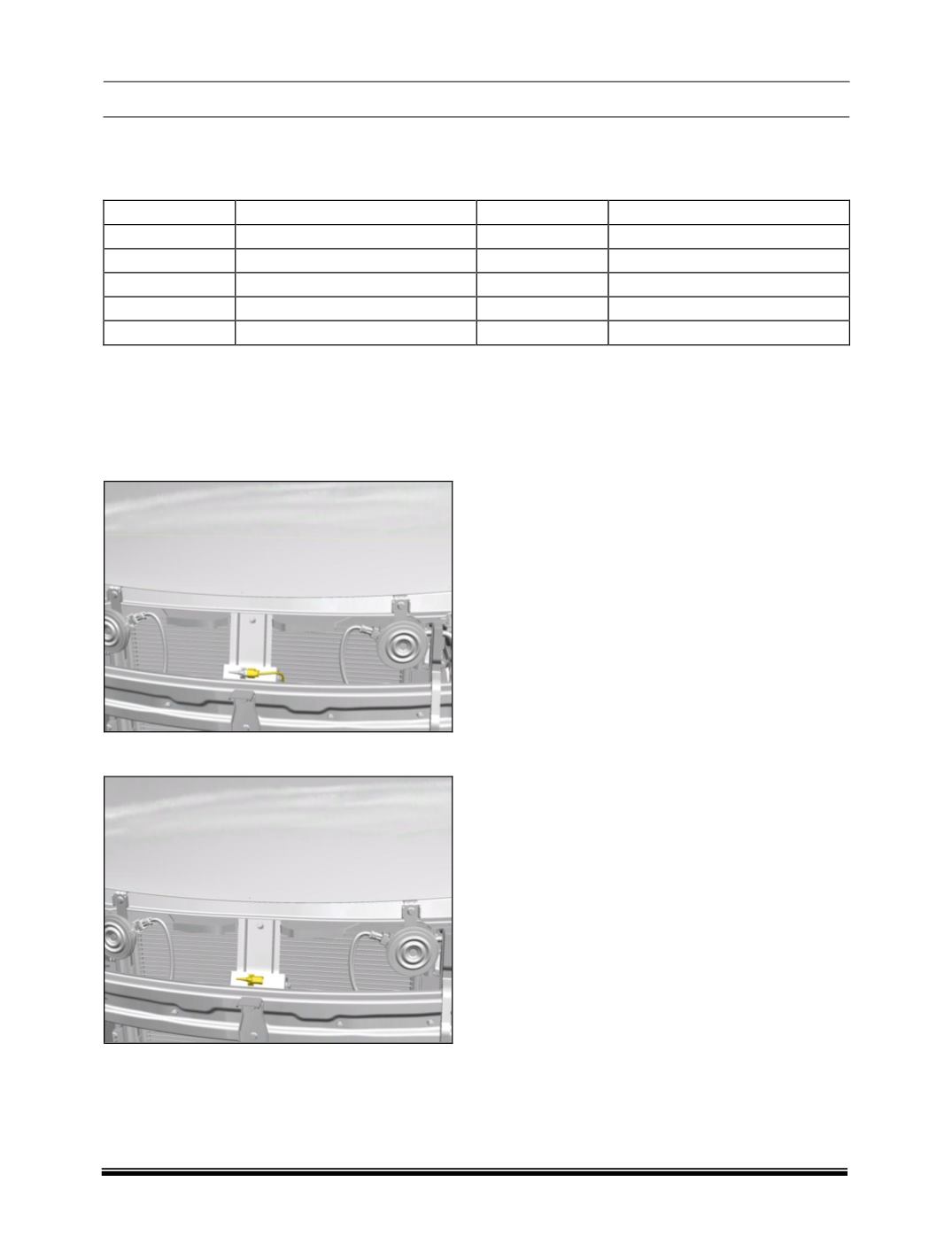

REMOVAL

1. Remove the Front bumper.

(For removal, refer

Font Bumper removal procedure in Body

Section).

2. Disconnect the electrical connection.

3. Pull out the OAT sensor from the location.

FITMENT

For fitment follow reverse procedure of removal.
