2. Temperature Actuator

To operate heater flap inside HVAC Box, this flap

diverts Hot & cold air inside HVAC Box.

3. Fresh / Recirculation Actuator

It operates flap inside Fresh air inlet, this flap open/

close path for outside air in to HVAC Box.

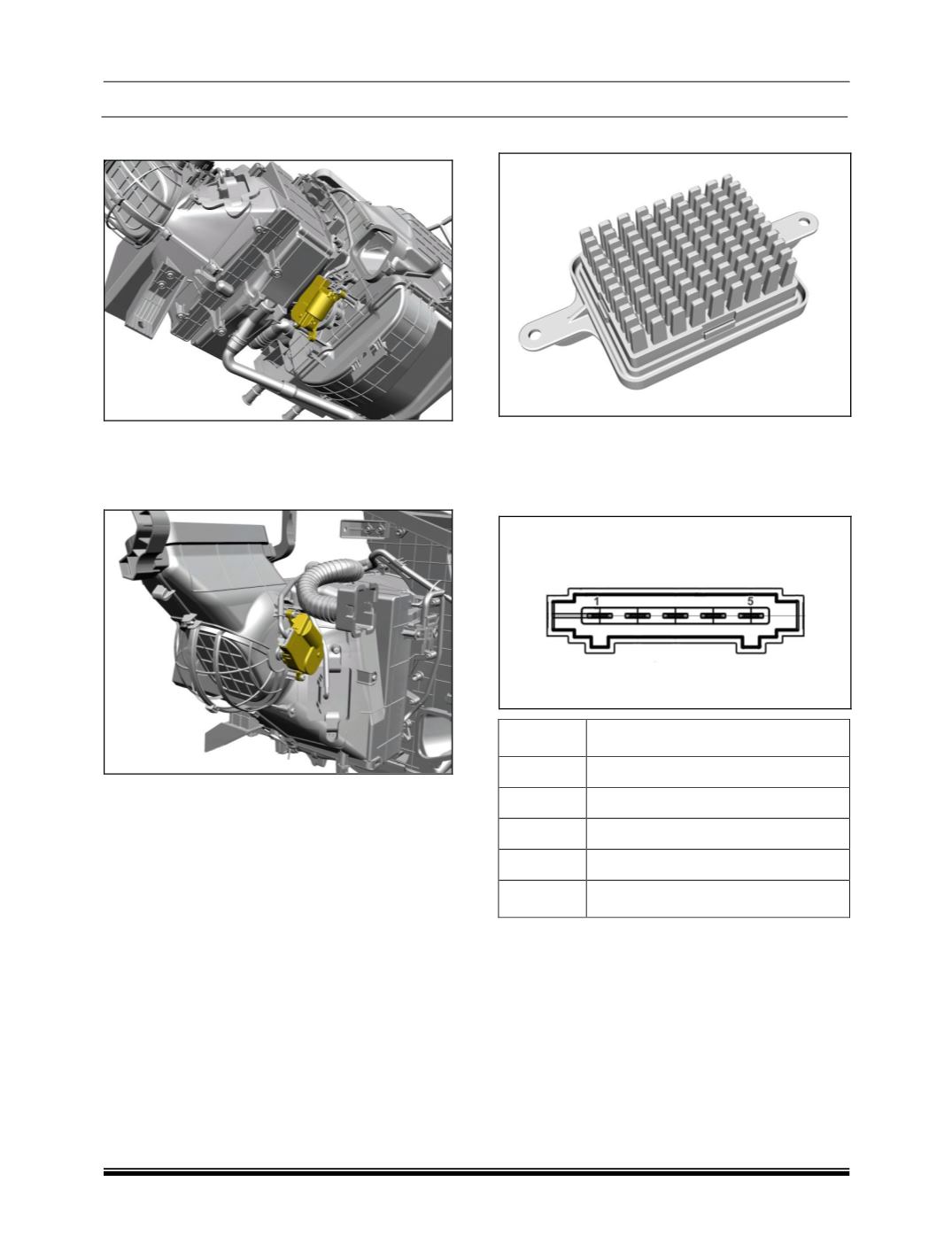

E. LINEAR POWER MODULE

In case of FATC a LPM is used to enable the ECU to

control the blower speed in smaller increments. It is

mounted on evaporator housing.

PINOUT

PIN NO

DESCRIPTION

CONTROL

DIAGNOSTICS

- MOTOR

+ BAT

GND
